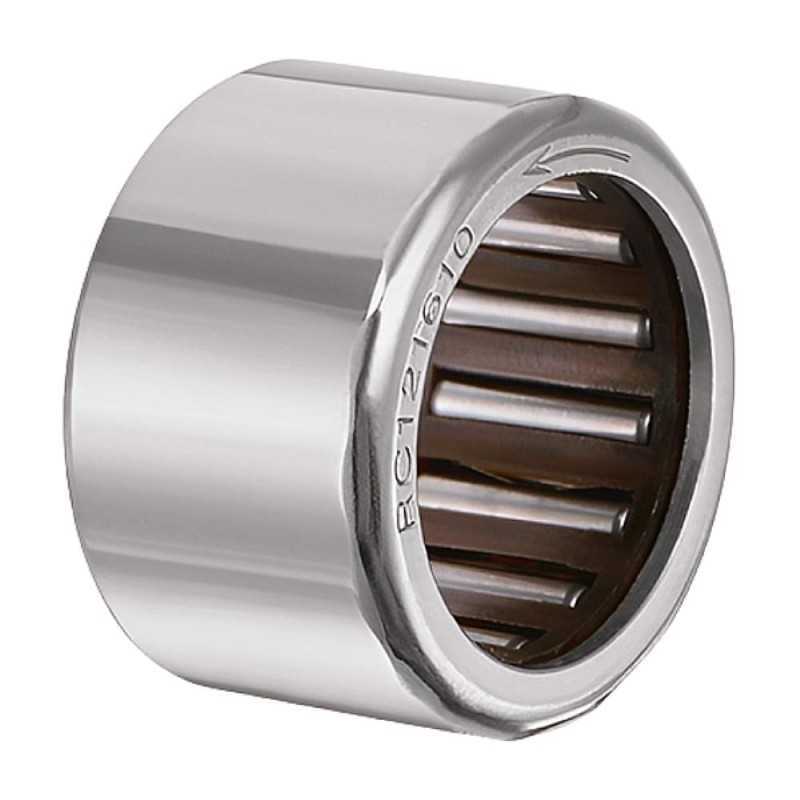

RC-162110 RICH Drawn Cup Roller Clutch - 25.4 x 33.37 x 15.875 mm
Technical Specifications:
- Brand: RICH
- Type: Drawn Cup Roller Clutch (One-Way Clutch)
- Model: RC-162110
- Dimensions: 25.4 x 33.37 x 15.875 mm
- Bore Diameter (Fw): 25.4 mm
- Outer Diameter (D): 33.37 mm
- Width (B): 15.875 mm
- Weight: 0.026 kg
- Country of Origin: China
The RC-162110 RICH is a robust drawn cup roller clutch, specifically engineered to provide reliable one-way power transmission in compact mechanical systems. Manufactured by RICH, this unit features precise metric dimensions of 25.4 x 33.37 x 15.875 mm and utilizes a thin-walled drawn cup outer ring, optimized for simple, press-fit installation.
This roller clutch functions as a sprag-type clutch, where spring-loaded needle rollers engage the shaft to transmit rotational force in one direction (driving) and release tension to allow free motion in the opposite direction (freewheeling). This critical functionality makes the RC-162110 RICH essential for applications requiring precise indexing, secure backstopping (to prevent reverse motion), or effective overrunning capabilities. The drawn cup design ensures a high torque capacity relative to its compact size and low weight (0.026 kg), making it highly efficient for gearboxes, handling equipment, and specialized industrial machinery.
Key Performance Advantages:
- One-Way Torque Transmission: Provides dependable driving and freewheeling functionality.
- High Torque Capacity: Robust roller design ensures effective power transfer for its size.
- Space-Saving Design: Thin-walled drawn cup facilitates compact, press-fit installation.
- Versatile Use: Essential component for indexing, backstopping, and overrunning mechanisms.
Data sheet
Inner Diameter
25,4
Outer Diameter
33,37
Width
15.875
Weight
0,026
Clearance
CN (Normal)
