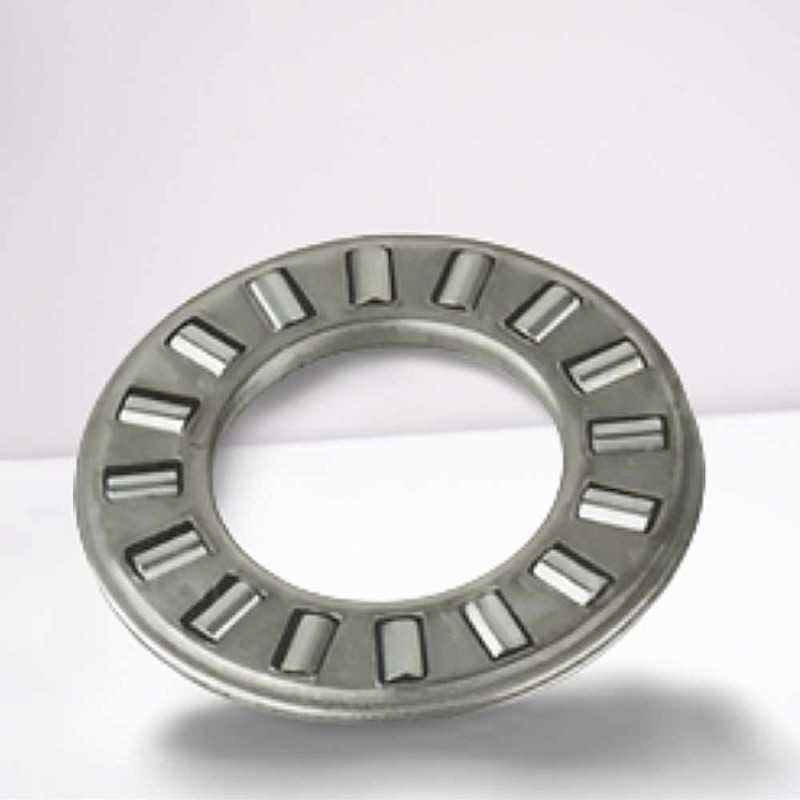

NTA-1625 RICH Axial Needle Roller and Cage Assembly - 25.4 x 39.67 x 1.98 mm
Technical Specifications:
- Brand: RICH
- Type: Axial Needle Roller and Cage Assembly (Thrust)
- Model: NTA-1625
- Dimensions: 25.4 x 39.67 x 1.98 mm
- Inner Diameter (d): 25.4 mm
- Outer Diameter (D): 39.67 mm
- Height (B): 1.98 mm
- Cage Material: Steel
- Weight: 0.006 kg
- Country of Origin: China
The NTA-1625 RICH is a high-precision Axial Needle Roller and Cage Assembly specifically engineered for thrust applications where high load capacity and minimal axial space are critical. Manufactured by RICH, this assembly features metric dimensions of 25.4 x 39.67 x 1.98 mm.
The component consists of a robust steel cage that guides and retains a large number of hardened needle rollers. This design provides the highest possible load-carrying capability for a given axial cross-section. The extremely small axial height of the assembly makes it ideal for integrating into gearboxes, automotive transmissions, and compact industrial machinery. The NTA-1625 RICH must be used with hardened and ground raceways, typically provided by companion thrust washers (AS series) or suitably hardened adjacent machine components.
Key Performance Advantages:
- High Axial Load Capacity: Large complement of needle rollers provides superior thrust load support.
- Minimal Axial Space: Extremely small cross-section for space-constrained designs.
- Steel Cage: Ensures roller retention and smooth, reliable operation under load.
- Easy Installation: Simple, separable design facilitates mounting and disassembly.
Data sheet
Inner Diameter
25.4
Outer Diameter
39.67
Width
1.98
Weight
0,006
Category
Axial Needle Roller and Cage Assembly
