27-L-050 RICH Pulley 81,1x19

RICH
PD27L050
€6.37
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

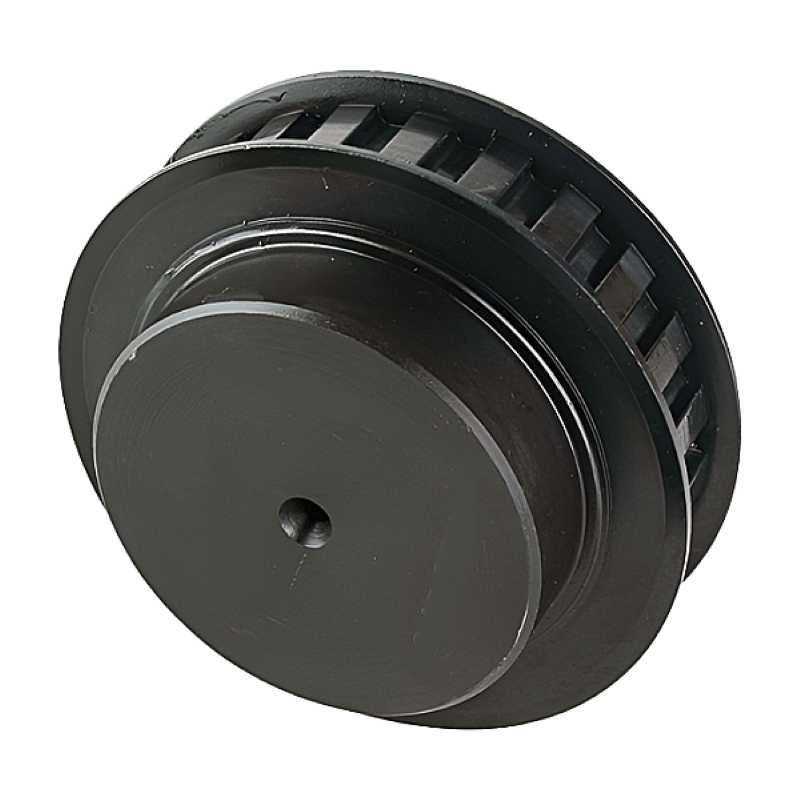

27-L-050 RICH Pulley Diameter 81.10 mm, Length 19 mm

Technical Specifications

  • Catalog Code: 27-L-050
  • Brand: RICH
  • Type: Pulley with Flanges
  • Profile: L
  • Belt Width (bo): 12.7 mm (1/2")
  • Material: Carbon Steel C45 / 1.0503 / AISI1045
  • Outer Diameter (S): 81.10 mm
  • Length (W): 19 mm
  • E [mm]: 86
  • H [mm]: 64
  • Y [mm]: 32
  • Z [mm]: 13
  • R [mm]: 81.86
  • Number of Teeth: 27
  • Execution: 1
  • Mounting: With Hub, Pulley with Center Holes
  • Features: Pulley with Flanges
  • Weight: 1.05 kg
  • Country of Origin: China

Key Features

  • Designed for belts with width 12.7 mm (1/2").
  • Compact pulley with hub and flanges for secure belt guidance.
  • Center holes for precise mounting.
  • Made of durable carbon steel C45 for strength and reliability.

Data sheet

Outer Diameter
81,1
Width
19
