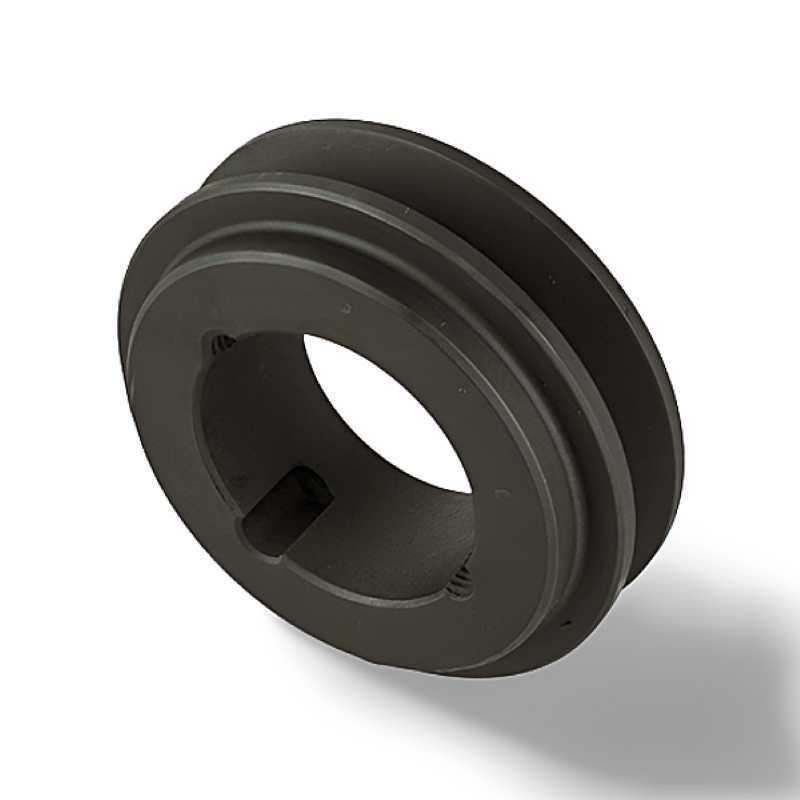

106SPZ1 RICH V-Belt Pulley 106x16
106SPZ1 RICH V-Belt Pulley Diameter 106 mm, Width 16 mm
Technical Specifications
- Catalog Code: 106SPZ1
- Brand: RICH
- Type: V-Belt Pulley
- Profile: SPZ
- Number of Grooves: 1
- Material: Grey Cast Iron
- Outer Diameter (dw): 106 mm
- Width (W): 16 mm
- L [mm]: 25
- M [mm]: 92
- Z [mm]: 9
- Execution: 1
- Mounting: Taper Bushing (Taper Lock 1610)
- Features: With Hub, Pulley with Center Holes, Pulley with Flanges
- Weight: 0.87 kg
- Country of Origin: China
Key Features
- Designed for SPZ profile belts with 1 groove.
- Taper bushing mounting for secure and easy installation.
- Made of durable grey cast iron for strength and reliability.
- Compact design with hub and center holes for precise alignment.
