100SPZ1 RICH V-Belt Pulley 100x16

RICH
PBT100SPZ1
€3.69
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

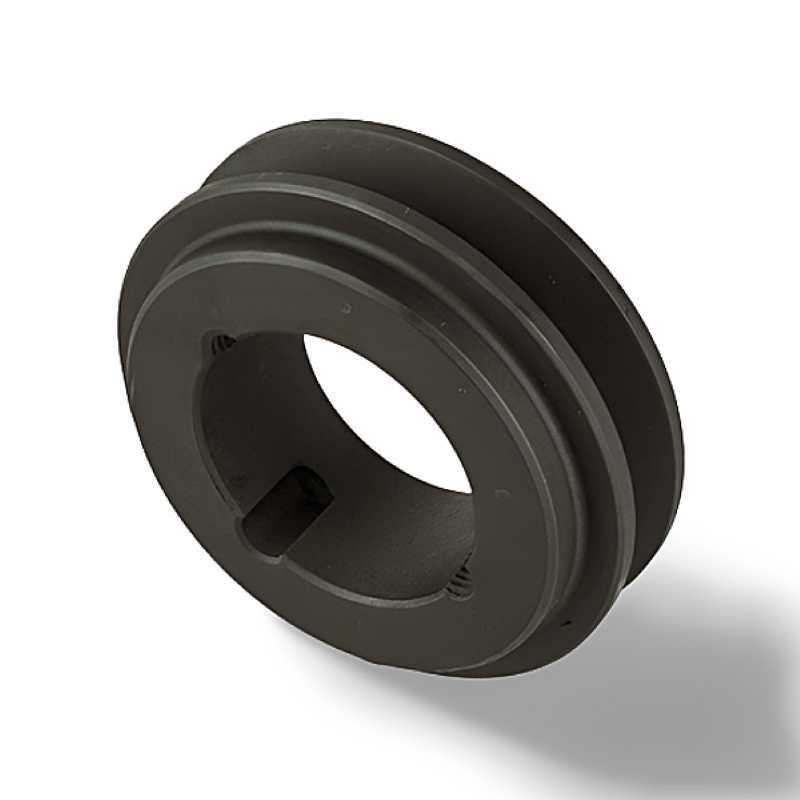

100SPZ1 RICH V-Belt Pulley Diameter 100 mm, Width 16 mm

Technical Specifications

  • Catalog Code: 100SPZ1
  • Brand: RICH
  • Type: V-Belt Pulley
  • Profile: SPZ
  • Number of Grooves: 1
  • Material: Grey Cast Iron
  • Outer Diameter (dw): 100 mm
  • Width (W): 16 mm
  • L [mm]: 25
  • M [mm]: 86
  • Z [mm]: 9
  • Execution: 1
  • Mounting: Taper Bushing (Taper Lock 1210)
  • Features: With Hub, Pulley with Center Holes, Pulley with Flanges
  • Weight: 0.82 kg
  • Country of Origin: China

Key Features

  • Designed for SPZ profile belts with 1 groove.
  • Taper bushing mounting for secure and easy installation.
  • Made of durable grey cast iron for strength and reliability.
  • Compact design with hub and center holes for precise alignment.

Data sheet

Outer Diameter
100
Width
16
