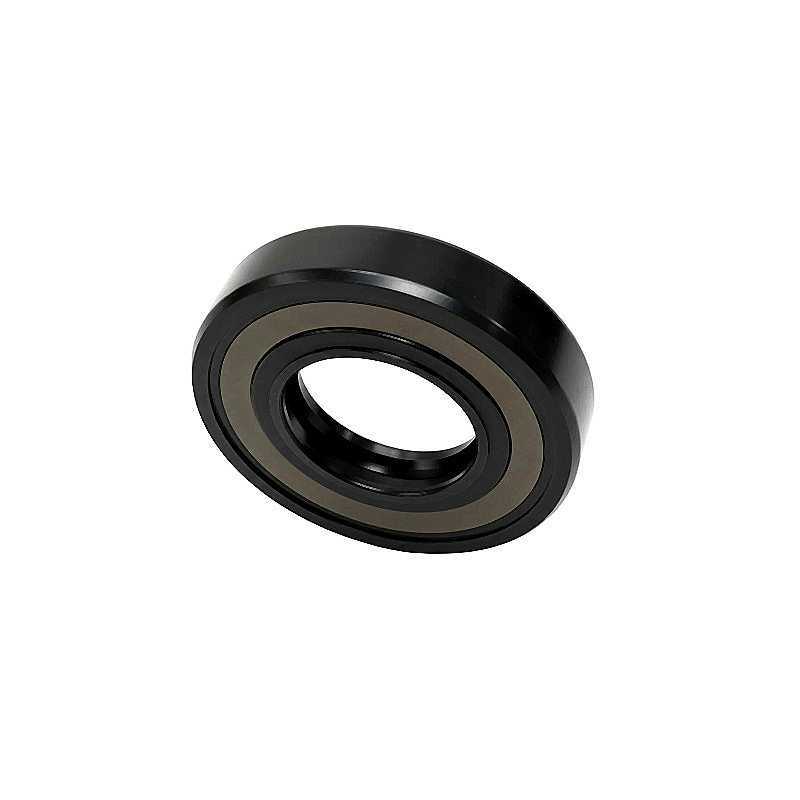

Oil Seal RICH 18x35x6/6,5 BABSL NBR 01003796B RICH
zoom_out_map
Oil Seal RICH 18x35x6/6,5 BABSL NBR 01003796B RICH

Oil Seal RICH 18x35x6/6,5 BABSL NBR

Type: Oil Seal / Shaft Seal / Sealing Ring (Double lip seal)
Model: Oil Seal RICH 18 x 35 x 6/6.5 NBR
Material: NBR (Nitrile Butadiene Rubber)
Brand: RICH
Origin: China
RICH
01003796B

Volume discounts

Quantity Unit price
10 €5.44
20 €5.18
50 €4.92
100 €4.66
€6.01
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 18 x 35 x 6/6.5 NBR

Technical Specifications:

  • Catalog Code: 18 x 35 x 6/6.5 NBR RICH
  • Brand: RICH
  • Type: Oil Seal / Shaft Seal / Sealing Ring (Double lip seal)
  • Inner Diameter (d): 18 mm
  • Outer Diameter (D): 35 mm
  • Height 1 (h1): 6 mm
  • Height 2 (h2): 6.5 mm
  • Material: NBR (Nitrile Butadiene Rubber)
  • Working Pressure: 10 bar
  • Temperature Range: -30°C to +100°C
  • Country of Origin: China

Key Performance Advantages:

  • High-Grade NBR Resilience: Specifically formulated for excellent resistance to mineral oils, hydraulic fluids, and grease, maintaining elasticity and structural integrity across diverse temperature ranges.
  • Pressure Stability: Engineered to operate effectively under working pressures of up to 10 bar, ensuring a consistent leak-proof barrier in pressurized hydraulic and mechanical systems.
  • Double Lip Protection: Features a primary spring-loaded sealing lip for maximum oil retention and a secondary auxiliary dust lip that acts as a robust shield against external contaminants.
  • Efficient Lubricant Retention: The spring-loaded sealing lip ensures consistent radial pressure on the shaft, effectively preventing oil leaks even under continuous mechanical rotation.
  • Precision Shaft Engineering: Optimized for 18 mm shaft diameters, providing a controlled fit that minimizes friction while maximizing sealing efficiency under load.

Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
18
Outer Diameter
35
Width
6/6,5
Weight
0,009
Compatible with Corteco
01003796B
