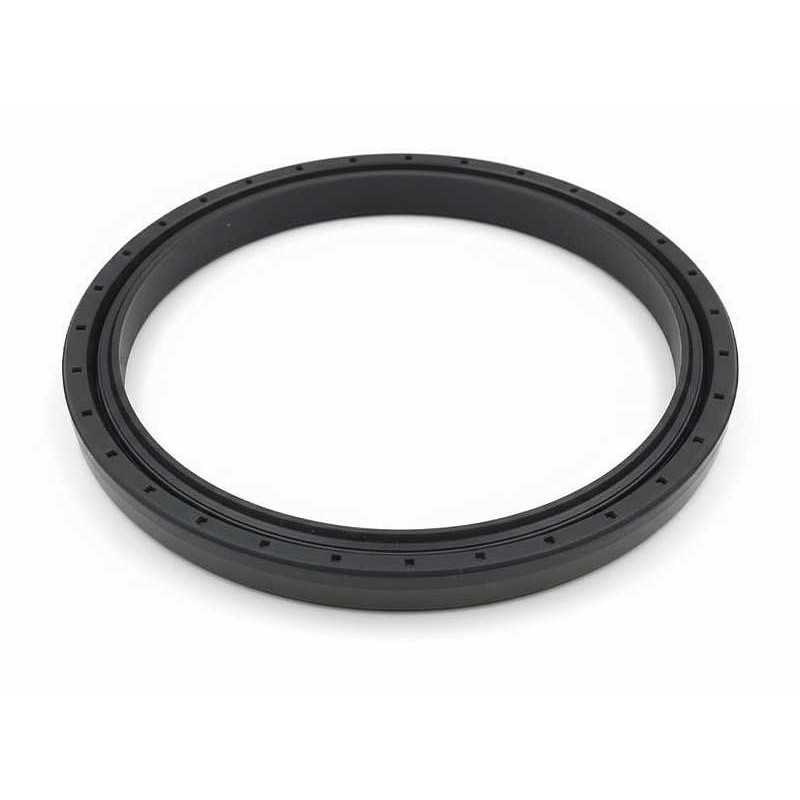

Oil Seal RICH 150x180x14,5/16 KASSETTE NBR 12018035B RICH
zoom_out_map
Oil Seal RICH 150x180x14,5/16 KASSETTE NBR 12018035B RICH

Oil Seal RICH 150x180x14,5/16 KASSETTE NBR

Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
Model: RICH 150 x 180 x 14.5/16 NBR KASSETTE
Material: NBR Nitrile Rubber (-30÷100°C)
Brand: RICH
Origin: China
RICH
12018035B

Volume discounts

Quantity Unit price
10 €18.00
20 €17.14
50 €16.28
100 €15.42
€19.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 150 x 180 x 14.5/16 NBR KASSETTE

OE References:

  • CARRARO: 047701, 047702, 133267, 149702, 149703
  • CASE: 247546A1, 87415728
  • CLAAS: 6005030587
  • DANA SPICER: 000051785, 3764634M1, 51785, 7380606901, 87415728
  • FENDT: F339300020020, H524300020100, H218PB0145050
  • JOHN DEERE: AL159594, ER047702, RE204870
  • MASSEY FERGUSON: 053850R1, 3907166M1
  • RENAULT: 6005009891
  • VOLVO: 11709366
  • VALTRA: 31795910, 87349641, KH4967, V31795910, V35730500

Technical Specifications:

  • Brand: RICH
  • Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
  • Inner Diameter (d): 150 mm
  • Outer Diameter (D): 180 mm
  • Base Height (h1): 14.5 mm
  • Total Height (h2): 16 mm
  • Material: NBR (Nitrile Butadiene Rubber)
  • Temperature Range: -30°C to +100°C
  • Country of Origin: China

Performance Characteristics:

  • KASSETTE Unitized Design: Features an integrated sealing system where the lips rotate against an internal sleeve, isolating the 150 mm shaft from friction and wear.
  • Shaft Interface Protection: The unitized construction prevents the formation of grooves on the axle journal, eliminating the need for shaft hardening, metal spraying, or surface repair during maintenance.
  • NBR Material Resilience: The Nitrile compound is optimized for constant contact with mineral oils and hydraulic fluids within standard industrial temperature ranges (-30°C to +100°C).
  • Axial Mud/Water Shield: Engineered with a labyrinth lip configuration to provide a physical barrier against mud, dust, and water ingress, essential for earthmoving and agricultural axles.
  • Static Housing Seal: The 180 mm outer diameter is designed for a secure interference fit, ensuring zero bypass leakage between the seal and the axle housing.

Transparency Note: This product is manufactured under the RICH brand. All OE references provided (Carraro, Case, John Deere, etc.) are used exclusively for identification and compatibility purposes and do not imply association with the original equipment manufacturers.

Data sheet

Inner Diameter
150
Outer Diameter
180
Width
14,5
16
Weight
0,35
Compatible with Corteco
12018035B
