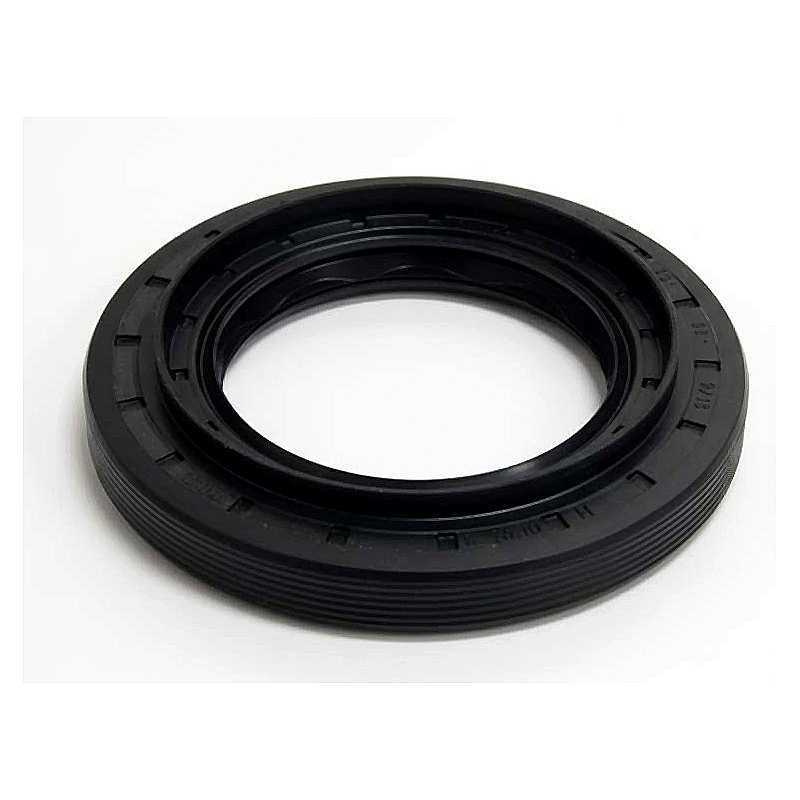

Oil Seal RICH 50x82x9 ACM 01036808B RICH
zoom_out_map
Oil Seal RICH 50x82x9 ACM 01036808B RICH

Oil Seal RICH 50x82x9 ACM

Type: Oil Seal / Shaft Seal / Sealing Ring (Double lip seal)
Model: Oil Seal RICH 50 x 82 x 9 ACM
Material: ACM (Polyacrylate Rubber)
Brand: RICH
Origin: China
RICH
01036808B

Volume discounts

Quantity Unit price
10 €2.05
20 €1.95
50 €1.85
100 €1.75
€2.26
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 50 x 82 x 9 ACM

OE Reference:

  • ZF: 0734319684

Technical Specifications:

  • Catalog Code: 50 x 82 x 9 ACM RICH
  • Brand: RICH
  • Type: Oil Seal / Shaft Seal / Sealing Ring (Double lip seal)
  • Inner Diameter (d): 50 mm
  • Outer Diameter (D): 82 mm
  • Height (h): 9 mm
  • Material: ACM (Polyacrylate Rubber)
  • Swirl Type: DRW (Bi-directional Twist)
  • Country of Origin: China

Key Performance Advantages:

  • High-Temperature Stability: The ACM (Polyacrylate Rubber) compound is specifically chosen for its ability to maintain sealing integrity at higher temperatures where standard rubbers might fail.
  • Bi-directional Swirl Technology: Features a DRW twist pattern on the sealing lip, which utilizes the shaft's rotation to guide oil back into the housing regardless of rotation direction, ensuring a leak-proof interface.
  • Double Lip Protection: Engineered with a primary spring-loaded sealing lip for maximum oil retention and a secondary auxiliary dust lip that acts as a robust shield against external contaminants.
  • Chemical Resistance: Optimized for resistance against modern transmission fluids containing aggressive additives, preventing premature hardening of the seal.
  • ZF Precision Compliance: Precision-manufactured to match the exact technical standards of ZF reference 0734319684, guaranteeing a reliable factory-standard replacement for specialized gearbox systems.

Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
50
Outer Diameter
82
Width
9
Weight
0,05
Compatible with Corteco
01036808B
