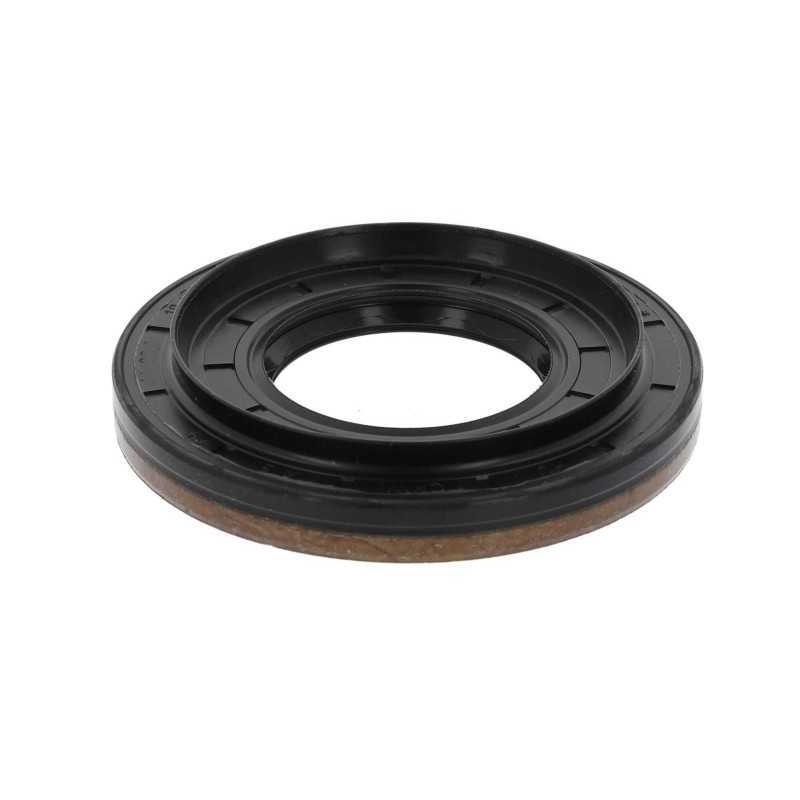

Oil Seal RICH 44×90,1×10/15 ACM 01033294B RICH
zoom_out_map
Oil Seal RICH 44×90,1×10/15 ACM 01033294B RICH

Oil Seal RICH 44×90,1×10/15 ACM

Type: Oil Seal / Shaft Seal / Sealing Ring
Model: RICH 44 x 90.1 x 10/15 ACM
Material: ACM Polyacrylate Rubber (-30÷150°C)
Brand: RICH
Origin: China
RICH
01033294B

Volume discounts

Quantity Unit price
10 €3.72
20 €3.54
50 €3.37
100 €3.19
€4.11
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 44 × 90.1 × 10/15 ACM

OE References:

  • BMW: 33107505604, 33107564416, 33131214322, 33137513974, 1214323
  • LAND ROVER: TBX000110
  • CORTECO: 01033294B

Technical Specifications:

  • Brand: RICH
  • Type: Oil seal / Shaft seal / Sealing ring
  • Inner Diameter (d): 44 mm
  • Outer Diameter (D): 90.1 mm
  • Base Height (h1): 10 mm
  • Total Height (h2): 15 mm
  • Material: ACM (Polyacrylate Rubber)
  • Temperature Range: -30°C to +150°C
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Elastomeric sealing element based on ACM.
  • Thermal Classification: Heat resistance and oil stability aligned with ACM material properties.
  • Profile Geometry: Radial shaft sealing structure.
  • Structural Layout: Precision-engineered sealing lip for optimized fluid retention and lubricant containment in drivetrain applications.
  • Dimensional Format: 44 × 90.1 × 10/15 mm configuration.

Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
44
Outer Diameter
90,1
Width
10
Weight
0,074
Compatible with Corteco
01033294B
