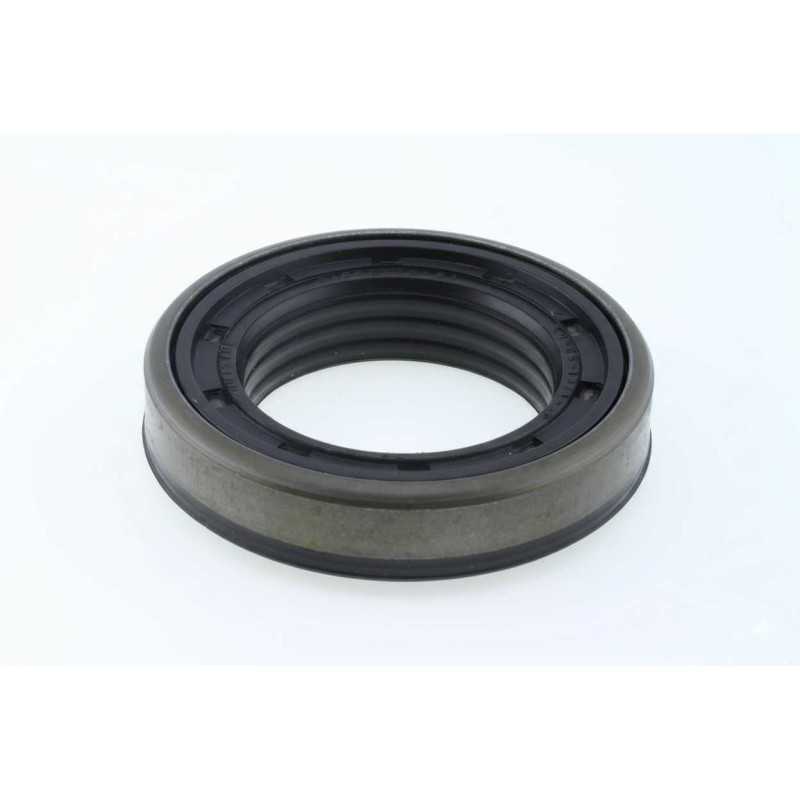

Oil Seal RICH 40x65x13/14,5 KASSETTE NBR 49416557 RICH
zoom_out_map
Oil Seal RICH 40x65x13/14,5 KASSETTE NBR 49416557 RICH

Oil Seal RICH 40x65x13/14,5 KASSETTE NBR

Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
Model: RICH 40 x 65 x 13/14.5 NBR KASSETTE
Material: NBR Nitrile Rubber (-30÷100°C)
Brand: RICH
Origin: China
RICH
49416557

Volume discounts

Quantity Unit price
10 €6.54
20 €6.22
50 €5.91
100 €5.60
€7.22
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 40 × 65 × 13/14.5 NBR KASSETTE

OE References:

  • LEMKEN: 32310068
  • CORTECO: 49416557

Technical Specifications:

  • Brand: RICH
  • Type: Oil seal / Shaft seal / Sealing ring (KASSETTE)
  • Inner Diameter (d): 40 mm
  • Outer Diameter (D): 65 mm
  • Base Height (h1): 13 mm
  • Total/Inner Ring Height (h2): 14.5 mm
  • Material: NBR (Nitrile Butadiene Rubber)
  • Weight: 0.079 kg
  • Temperature Range: -30°C to +100°C
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Elastomeric sealing element based on NBR.
  • Thermal Classification: Operating range consistent with NBR material specifications.
  • Profile Geometry: KASSETTE unitized labyrinth configuration.
  • Structural Layout: Integrated internal wear sleeve with a multi-lip system for maximum exclusion of environmental contaminants in agricultural applications.
  • Dimensional Format: 40 × 65 × 13/14.5 mm configuration.

Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
40
Outer Diameter
65
Width
13 / 14,5
Weight
0,096
Compatible with Corteco
49416557
