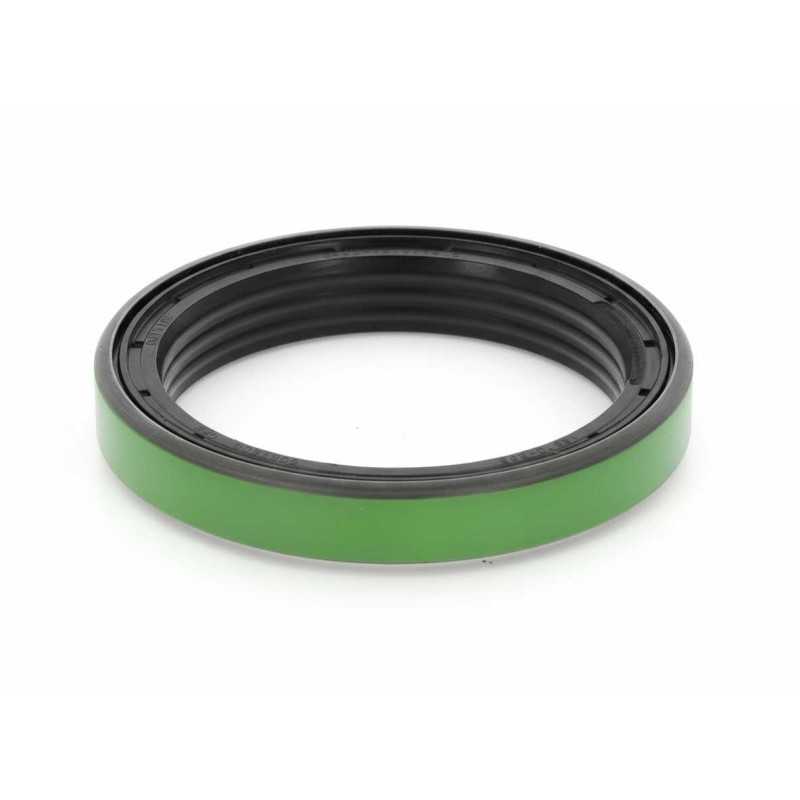

Oil Seal RICH 70x90x13,5/14,5 KASSETTE FPM 12015793B RICH
zoom_out_map
Oil Seal RICH 70x90x13,5/14,5 KASSETTE FPM 12015793B RICH

Oil Seal RICH 70x90x13,5/14,5 KASSETTE FPM

Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
Model: RICH 70 x 90 x 13.5/14.5 FPM KASSETTE
Material: FPM Fluoroelastomer (-20÷200°C)
Brand: RICH
Origin: China
RICH
12015793B

Volume discounts

Quantity Unit price
10 €11.51
20 €10.97
50 €10.42
100 €9.87
€12.72
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 70 × 90 × 13.5/14.5 FPM KASSETTE

OE References:

  • IVECO: 40102270, 40102273
  • CORTECO: 12015793B

Technical Specifications:

  • Brand: RICH
  • Type: Oil seal / Shaft seal / Sealing ring (KASSETTE)
  • Inner Diameter (d): 70 mm
  • Outer Diameter (D): 90 mm
  • Base Height (h1): 13.5 mm
  • Total/Inner Ring Height (h2): 14.5 mm
  • Material: FPM Fluoroelastomer
  • Weight: 0.112 kg
  • Temperature Range: -20°C to +200°C
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Elastomeric sealing element based on FPM.
  • Thermal Classification: High-range thermal stability aligned with FPM material properties.
  • Profile Geometry: KASSETTE unitized labyrinth configuration.
  • Structural Layout: Integrated internal wear sleeve with a multi-lip system for maximum exclusion of environmental contaminants in high-heat operational environments.
  • Dimensional Format: 70 × 90 × 13.5/14.5 mm configuration.

Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
70
Outer Diameter
90
Width
13,5//14,5
Weight
0,112
Compatible with Corteco
12015793B
