• New

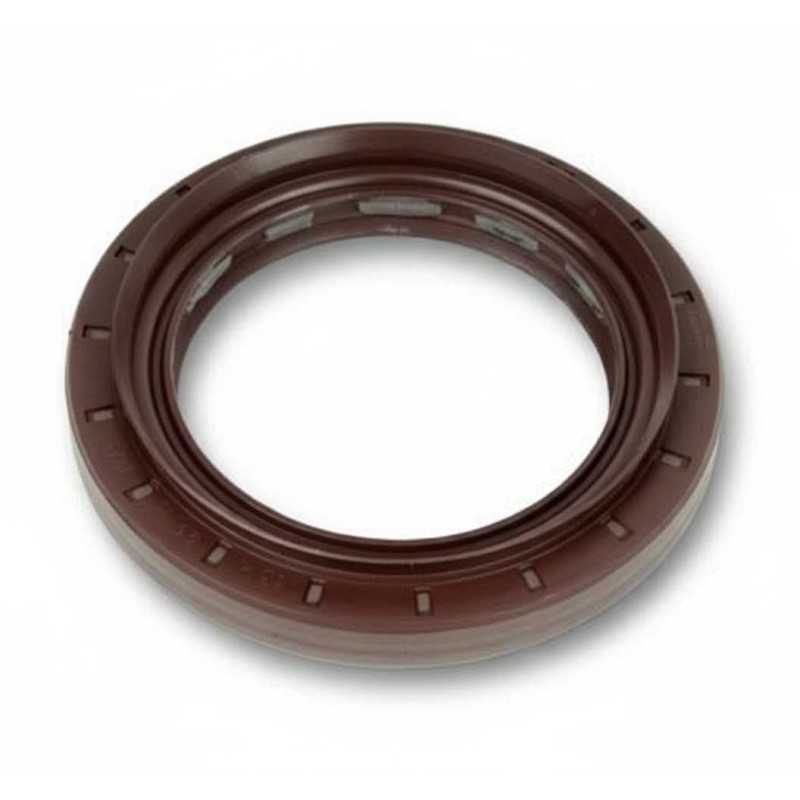

Oil Seal RICH 65x95x11/16 FPM 01034649B RICH
zoom_out_map
Oil Seal RICH 65x95x11/16 FPM 01034649B RICH

Oil Seal RICH 65x95x11/16 FPM

Type: Seal Ring / Oil Seal / Simmerring
Model: RICH 65 × 95 × 11/16 FPM
Material: FPM fluoroelastomer
Brand: RICH
Origin: China
RICH
01034649B

Volume discounts

Quantity Unit price
10 €10.75
20 €10.24
50 €9.73
100 €9.22
€11.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 65 × 95 × 11/16 FPM

OE References:

  • DAF: 1401069, AMPA068
  • CORTECO: 01034649B

Technical Specifications:

  • Brand: RICH
  • Type: Oil Seal / Shaft Seal / Sealing Ring
  • Inner Diameter (d): 65 mm
  • Outer Diameter (D): 95 mm
  • Height 1 (h1): 11 mm
  • Height 2 (h2): 16 mm
  • Material: FPM Fluoroelastomer
  • Temperature Range: -20°C to +200°C
  • Weight: 0.085 kg
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Sealing element based on FPM elastomer.
  • Thermal Classification: Operating range aligned with FPM material specifications.
  • Profile Geometry: Radial shaft sealing structure.
  • Structural Layout: Molded double sealing lip configured for contact with rotating surfaces and protection against external contaminants.
  • Dimensional Format: 65 × 95 × 11/16 mm profile.

Transparency Note: This oil seal is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
65
Outer Diameter
95
Width
11/ /16
Weight
0,085
Compatible with Corteco
01034649B
