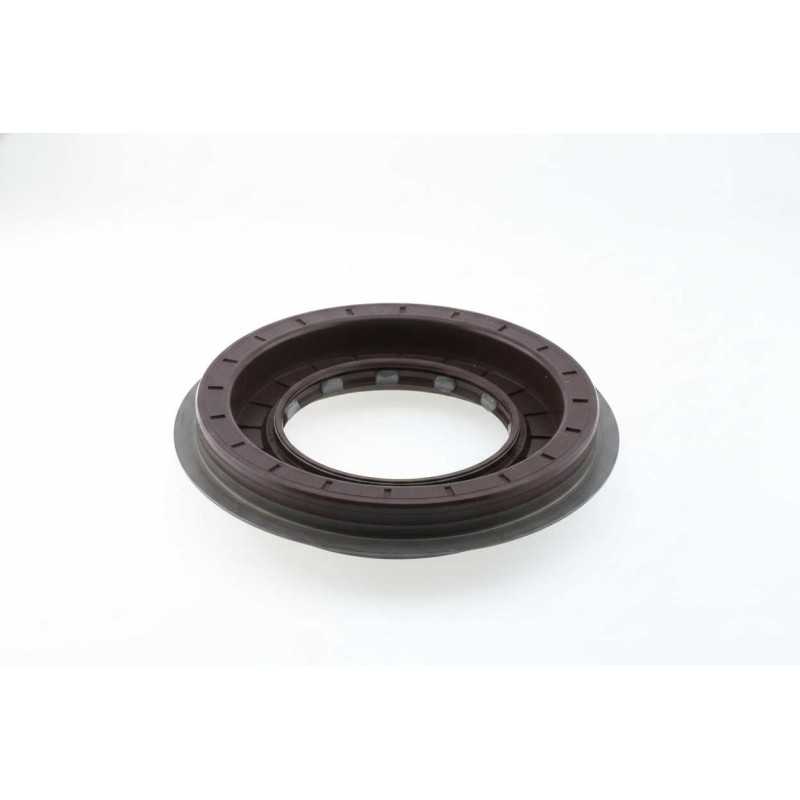

Oil Seal RICH 74,6x128/143x12,5/27,5 FPM 01020451B RICH
zoom_out_map
Oil Seal RICH 74,6x128/143x12,5/27,5 FPM 01020451B RICH

Oil Seal RICH 74,6x128/143x12,5/27,5 FPM

Type: Oil Seal / Shaft Seal / Sealing Ring
Model: RICH 74.6 x 128/143 x 12.5/27.5 FPM
Material: FPM Fluoroelastomer (-20÷200°C)
Brand: RICH
Origin: China
RICH
01020451B
€18.87
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 74.6 × 128/143 × 12.5/27.5 FPM

OE References:

  • EATON: 210724
  • CORTECO: 01020451B

Technical Specifications:

  • Brand: RICH
  • Type: Oil Seal / Shaft Seal / Sealing Ring
  • Inner Diameter (d): 74.6 mm
  • Outer Diameter (D): 128/143 mm
  • Height (h): 12.5/27.5 mm
  • Material: FPM Fluoroelastomer
  • Temperature Range: -20°C to +200°C
  • Weight: 0.237 kg
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Sealing element based on FPM elastomer.
  • Thermal Classification: Operating range aligned with FPM material specifications.
  • Profile Geometry: Radial shaft sealing structure with variable flange diameter.
  • Structural Layout: Molded double sealing lip configured for contact with rotating surfaces and protection against external contaminants.
  • Dimensional Format: 74.6 × 128/143 × 12.5/27.5 mm profile.

Transparency Note: This oil seal is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
74,6
Outer Diameter
128
Width
12,5
Weight
0,237
Compatible with Corteco
01020451B
