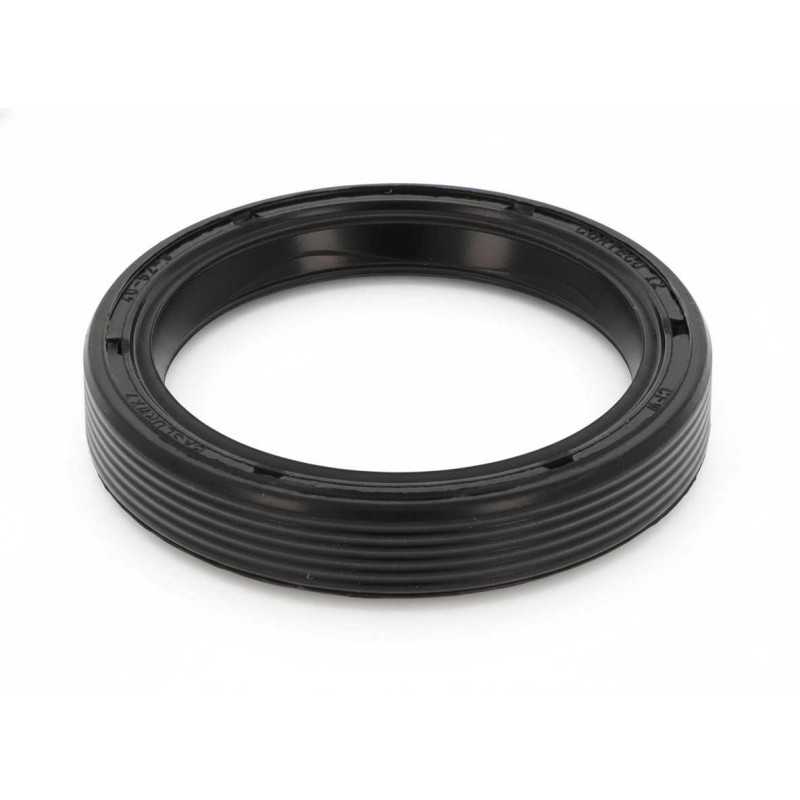

Oil Seal RICH 40x52x9 ACM 12010684B RICH
zoom_out_map
Oil Seal RICH 40x52x9 ACM 12010684B RICH

Oil Seal RICH 40x52x9 ACM

Type: Oil Seal / Shaft Seal / Sealing Ring
Model: RICH 40 x 52 x 9 ACM
Material: ACM Polyacrylate Rubber
Brand: RICH
Origin: China
RICH
12010684B

Volume discounts

Quantity Unit price
10 €1.56
20 €1.48
50 €1.41
100 €1.33
€1.72
€1.56 Save 9.48%
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

Oil Seal RICH 40 × 52 × 9 ACM

OE References:

  • AUDI: 014409399A, 014409399B, 014409399D, 014409400A
  • SEAT: 014409399D
  • VW: 14409399, 014409399D
  • CORTECO: 12010684B

Technical Specifications:

  • Brand: RICH
  • Type: Oil Seal / Shaft Seal / Sealing Ring
  • Inner Diameter (d): 40 mm
  • Outer Diameter (D): 52 mm
  • Height (h): 9 mm
  • Material: ACM Polyacrylate Rubber
  • Weight: 0.016 kg
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Sealing element based on ACM elastomer.
  • Thermal Classification: Operating range aligned with ACM material specifications, providing high resistance to transmission fluids and thermal loads.
  • Profile Geometry: Radial shaft sealing structure.
  • Structural Layout: Molded double sealing lip configured for optimized contact with rotating surfaces and protection against external contaminants.
  • Dimensional Format: 40 × 52 × 9 mm profile.

Transparency Note: This oil seal is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
40
Outer Diameter
52
Width
9
Weight
0,016
