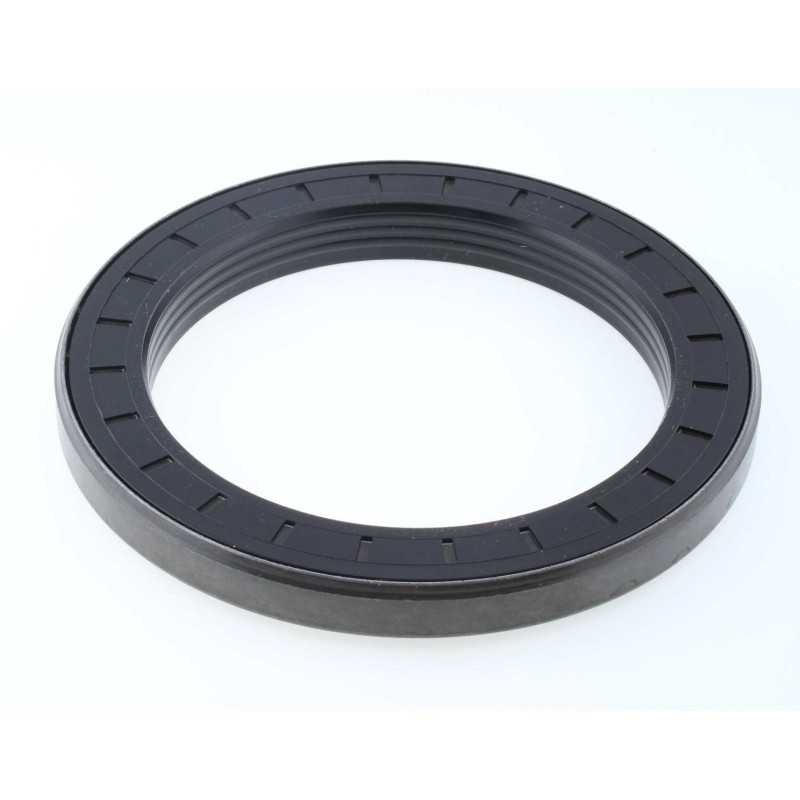

Oil Seal RICH 100x135x13/15 KASSETTE NBR

Oil Seal RICH 100 × 135 × 13/15 KASSETTE NBR

OE References:

• ROCKWELL: 21220158
• CORTECO: 12017274B

Technical Specifications:

• Brand: RICH
• Type: Oil Seal / Shaft Seal / Sealing Ring
• Inner Diameter (d): 100 mm
• Outer Diameter (D): 135 mm
• Height 1 (h1): 13 mm
• Height 2 (h2): 15 mm
• Material: NBR Nitrile Rubber
• Design: KASSETTE (Cassette Seal)
• Weight: 0.268 kg
• Country of Origin: China

Performance Characteristics:

• Material Type: Sealing element based on NBR elastomer.
• Thermal Classification: Operating range aligned with NBR material specifications for resistance to mineral oils and heavy-duty grease.
• Profile Geometry: Multi-component KASSETTE design featuring an integrated sleeve and multiple sealing lips.
• Structural Layout: Completely enclosed sealing system engineered to provide maximum protection against heavy external contamination, specifically for commercial vehicle axles and wheel hubs.
• Dimensional Format: 100 × 135 × 13/15 mm profile.

Transparency Note: This oil seal is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
