  • RT-509845 (509845A) RICH 20x43x13,75 509845A RICH

RT-509845 (509845A) RICH 20x43x13,75

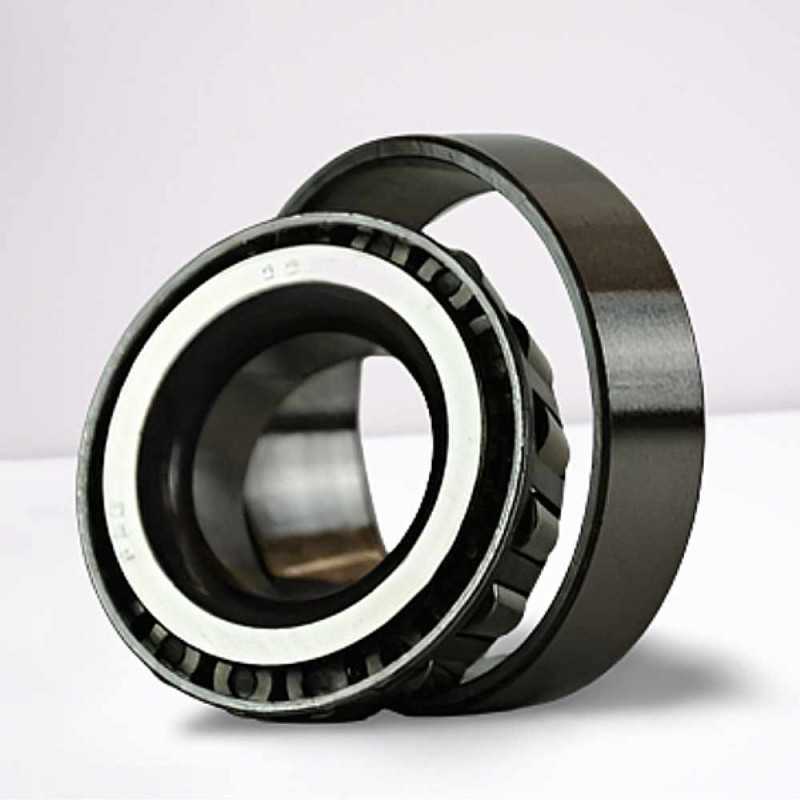

RT-509845 RICH Single Row Tapered Roller Bearing. Dimensions 20 x 43 x 13.75 mm. Designed for high combined radial and axial loads with a steel cage.

RICH
509845A
€6.23
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

RT-509845 RICH Single Row Tapered Roller Bearing - 20 x 43 x 13.75 mm

Technical Specifications:

  • Product Type: Single Row Tapered Roller Bearing
  • Cross Referemce:509845A FAG
  • Model Designation: RT-509845
  • Brand: RICH
  • Dimensions (d x D x T): 20 x 43 x 13.75 mm
  • Bore Diameter (d): 20 mm
  • Outer Diameter (D): 43 mm
  • Total Width (T): 13.75 mm
  • Inner Ring Width: 12 mm
  • Outer Ring Width (C): 11 mm
  • Rounding Radius (R1): 3 mm
  • Cage: Steel, guided by the rolling elements
  • Weight: 0.085 kg
  • Country of Origin: China

The RT-509845 RICH is a robust single row tapered roller bearing designed to carry combined radial and heavy axial loads in one direction. Featuring a bore diameter of 20 mm, an outer diameter of 43 mm, and a total width of 13.75 mm, this bearing is built for demanding industrial and automotive applications. The geometry of the rollers and raceways ensures true rolling motion and low friction. The bearing features a steel cage guided by the rolling elements and offers a rounding radius (R1) of 3 mm. The high-quality construction from RICH ensures high operational reliability and excellent performance under harsh conditions.

Key Performance Advantages:

  • High Load Capacity: Excellently manages combined radial and axial forces.
  • Low Friction: Optimized roller and raceway geometry ensures smooth operation.
  • Durable Construction: Features a robust steel cage guided by the rolling elements for enhanced reliability.
  • Standard Dimensions: Size (20 x 43 x 13.75 mm) is suitable for various machinery requirements.
  • RICH Quality: Dependable performance for power transmission, gearboxes, and wheel hubs.

Data sheet

Inner Diameter
20
Outer Diameter
43
Width
13,75
Weight
0,085
Roller Rows
Single Row
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Tapered Roller Bearing
