74550/74850 RICH 139,7x215,9x47,625 74550/850 RICH
search
  • 74550/74850 RICH 139,7x215,9x47,625 74550/850 RICH

74550/74850 RICH 139,7x215,9x47,625

RICH
74550/850
€67.24
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

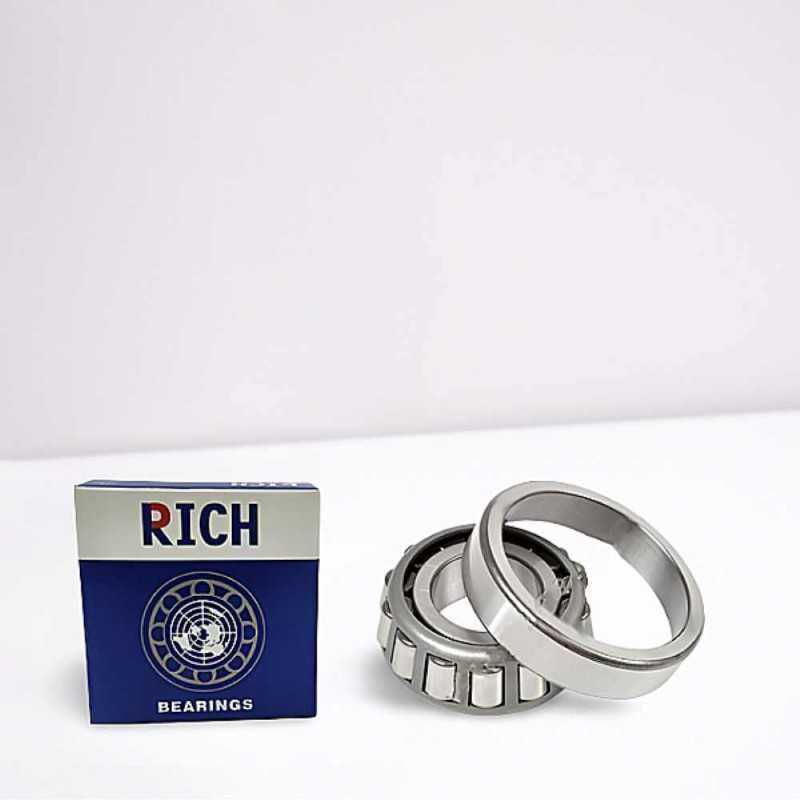

74550/74850 RICH Single Row Tapered Roller Bearing - 139.7 x 215.9 x 47.625 mm

Technical Specifications:

  • Brand: RICH
  • Type: Single Row Tapered Roller Bearing (Separable Cone 74550 / Cup 74850)
  • Model: 74550/74850
  • Inner Diameter (d): 139.7 mm
  • Outer Diameter (D): 215.9 mm
  • Width (T): 47.625 mm
  • Dimensions: 139.7 x 215.9 x 47.625 mm
  • Outer Ring Width (C): 34.925 mm
  • Inner Ring Width: 47.625 mm
  • Rounding Radius (R1): 3.5 mm
  • Weight: 5.92 kg
  • Country of Origin: China

Product Overview

The 74550/74850 RICH is a massive Single Row Tapered Roller Bearing engineered for maximum stiffness and the capacity to reliably manage extremely heavy combined radial and unidirectional axial loads. Manufactured by RICH, this bearing is a critical component in heavy-duty applications such as large industrial transmissions, heavy vehicle axles, and construction machinery where durability and sustained high-load performance are non-negotiable.

The **tapered roller design** ensures that the bearing can efficiently support both large radial forces and high thrust loads simultaneously. This model is supplied as a separable unit consisting of the cone (inner ring assembly, model 74550) and the cup (outer ring, model 74850). This feature facilitates easier mounting and allows for the precise adjustment of the running clearance or pre-load necessary for optimal system performance. With substantial dimensions of 139.7 x 215.9 x 47.625 mm, the 74550/74850 RICH is a robust, high-quality solution built for longevity under the most demanding conditions.

Key Performance Advantages:

  • Massive Load Capacity: Optimized geometry for supporting extreme combined radial and thrust loads.
  • High System Rigidity: Ensures reliable positional accuracy and stability in heavy machinery.
  • Separable Components: Cone and cup design allows for straightforward mounting and precise axial adjustment.
  • Heavy Duty Application: Built for sustained, reliable performance in strenuous industrial environments.

Data sheet

Inner Diameter
139,7
Outer Diameter
215,9
Width
47,625
Weight
5,92
Roller Rows
Single Row
Category
Single Row Tapered Roller Bearing
