26881/26824 RICH 39,688x80x23,812 26881/26824 RICH
zoom_out_map
26881/26824 RICH 39,688x80x23,812 26881/26824 RICH

26881/26824 RICH 39,688x80x23,812

The 26881/26824 RICH single row tapered roller bearing (39.688 x 80 x 23.812 mm) is designed for heavy combined radial and axial loads, featuring a separable design for easier installation in robust applications.

RICH
26881/26824
€8.62
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

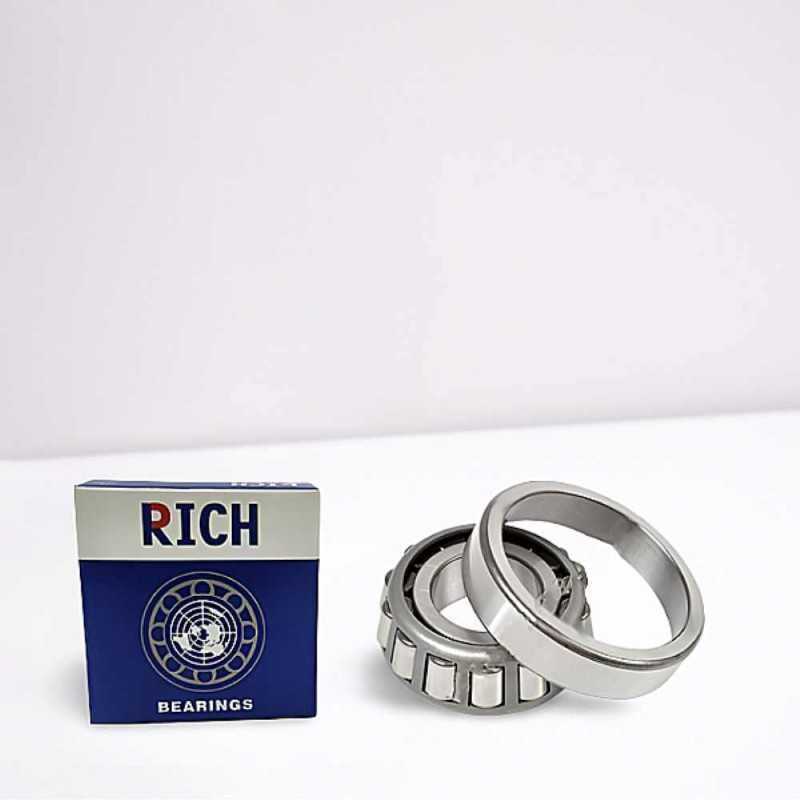

26881/26824 RICH Single Row Tapered Roller Bearing - 39.688 x 80 x 23.812 mm

Technical Specifications:

  • Product Type: Single Row Tapered Roller Bearing
  • Model Designation: 26881/26824
  • Brand: RICH
  • Bore Diameter (d): 39.688 mm
  • Outer Diameter (D): 80 mm
  • Total Width (T): 23.812 mm
  • Inner Ring Width (B): 25.4 mm
  • Outer Ring Width (C): 19.05 mm
  • Rounding Radius (R1): 3.5 mm
  • Weight: 0.527 kg
  • Country of Origin: China

The 26881/26824 RICH is a robust single row tapered roller bearing specifically engineered to sustain high combined radial and axial loads acting in one direction. The geometry, featuring tapered rollers and raceways, ensures excellent load distribution and minimizes friction, promoting durable and reliable performance. With precision dimensions of 39.688 mm bore, 80 mm outer diameter, and a 23.812 mm total width (T), this bearing is an ideal component for heavy-duty applications, including commercial vehicle axles, transmissions, and industrial machinery. The bearing's core benefit is its separable design, which allows the inner ring assembly (cone, 26881) and the outer ring (cup, 26824) to be mounted independently. This feature significantly simplifies the installation process and permits accurate setting of the bearing clearance.

Key Performance Advantages:

  • High Combined Load Capacity: Optimized to withstand demanding simultaneous radial and single-direction axial forces.
  • Separable Design: Facilitates straightforward mounting, dismantling, and precise setting of the bearing.
  • Precision Rolling: Tapered roller configuration ensures high running accuracy and efficiency.
  • RICH Quality: A durable, high-capacity component built for longevity in strenuous mechanical systems.

Data sheet

Inner Diameter
39,688
Outer Diameter
80
Width
23,812
Weight
0,527
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
