5395/5335 RICH 49,212x103,188x43,658

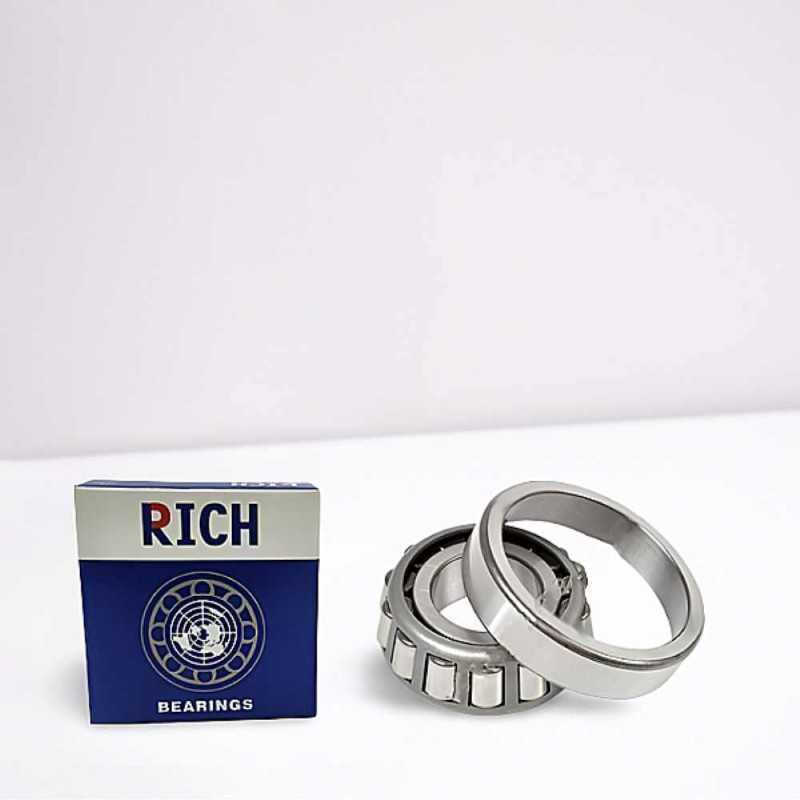

5395/5335 RICH Single Row Tapered Roller Bearing - 49.212 x 103.188 x 43.658 mm
Technical Specifications:
- Product Type: Single Row Tapered Roller Bearing
- Model Designation: 5395/5335
- Brand: RICH
- Bore Diameter (d): 49.212 mm
- Outer Diameter (D): 103.188 mm
- Total Width (T): 43.658 mm
- Inner Ring Width (B): 44.475 mm
- Outer Ring Width (C): 36.512 mm
- Weight: 1.775 kg
- Country of Origin: China
The 5395/5335 RICH is a premium, high-capacity single row tapered roller bearing built to endure significant combined radial and axial loads acting in one direction. The optimized tapered geometry and robust rollers ensure exceptional load distribution and reliable operation, minimizing friction for an extended service life. With substantial dimensions of 49.212 mm bore, 103.188 mm outer diameter, and a 43.658 mm total width (T), this bearing is crucial for heavy-duty industrial gearboxes, transmissions, and demanding machinery applications. A core feature is its separable design, which allows the cone (inner ring assembly, 5395) and the cup (outer ring, 5335) to be mounted independently, which simplifies assembly procedures and enables precise setting of the axial clearance.
Key Performance Advantages:
- Extreme Load Capacity: Engineered to sustain very high simultaneous radial and single-direction axial forces.
- Separable Design: Facilitates straightforward mounting, dismantling, and highly precise adjustment of the bearing setting.
- Durability: Heavy-duty construction ensures long-term reliability in high-stress mechanical systems.
- RICH Quality: A high-precision component guaranteeing stable and accurate operation.
Data sheet
Inner Diameter
49,212
Outer Diameter
103,188
Width
43,658
Weight
1,775
Roller Rows
Single Row
Cage
Steel Cage
Specific References
EAN13
4547359670684
