EC42320 S01 H106 RICH 41x68x19,05 EC42320S01H106 RICH
zoom_out_map
EC42320 S01 H106 RICH 41x68x19,05 EC42320S01H106 RICH

EC42320 S01 H106 RICH 41x68x19,05

Type: Single Row Tapered Roller Bearing
Model: EC42320 S01 H106 RICH
Dimensions: 41 x 68 x 19.05 mm
Brand: RICH
Origin: China
RICH
EC42320S01H106
€7.82
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

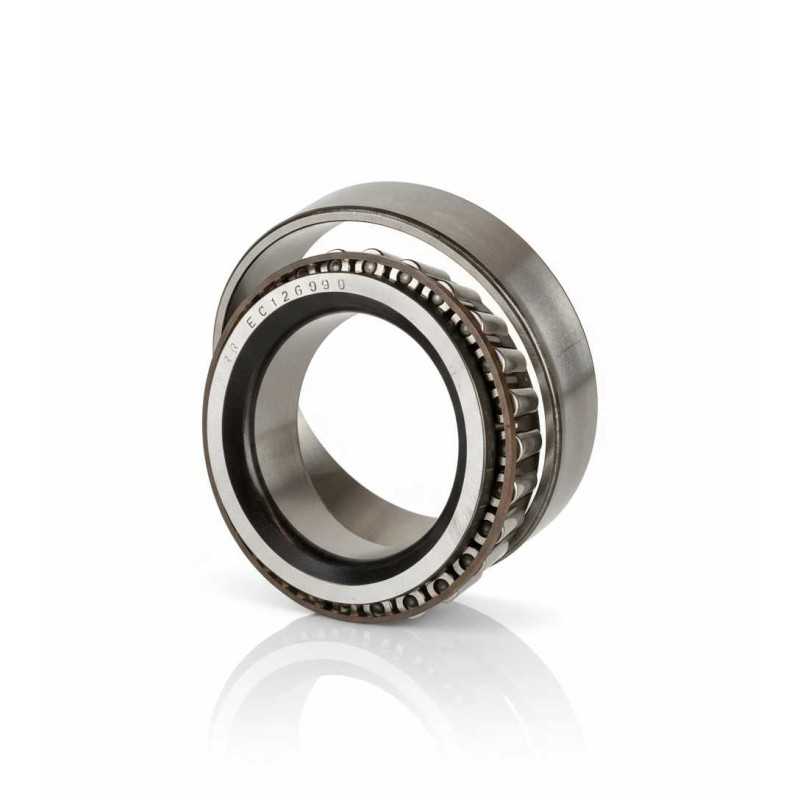

EC42320 S01 H106 RICH Single Row Tapered Roller Bearing – 41 × 68 × 19.05 mm

OE References:

  • FIAT 55192369
  • FIAT 55574110
  • FIAT 55574111
  • VAUXHALL 55192369
  • VAUXHALL 55574109

Technical Specifications:

  • Type: Single row tapered roller bearing
  • Brand: RICH
  • Model Designation: EC42320 S01 H106 RICH
  • Inner Diameter (d): 41 mm
  • Outer Diameter (D): 68 mm
  • Total Width (T): 19.05 mm
  • Inner Ring Width (B): 18 mm
  • Outer Ring Width (C): 15 mm
  • Rounding Radius (R1): 3.5 mm
  • Rounding Radius (R2): 1 mm
  • Weight: 0.255 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Single row tapered roller bearing designed for simultaneous radial and axial load management.
  • Internal Geometry: Tapered rollers and raceways arranged for convergent load distribution toward the bearing axis.
  • Material Composition: High-carbon chromium steel rings and rolling elements.
  • Dimensional Format: 41 × 68 × 19.05 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
41
Outer Diameter
68
Width
19,05
Weight
0,255
Roller Rows
Single Row
Cage
Steel
Category
Single Row Tapered Roller Bearing
