CBK339 RICH 107,95x158,75x23,02

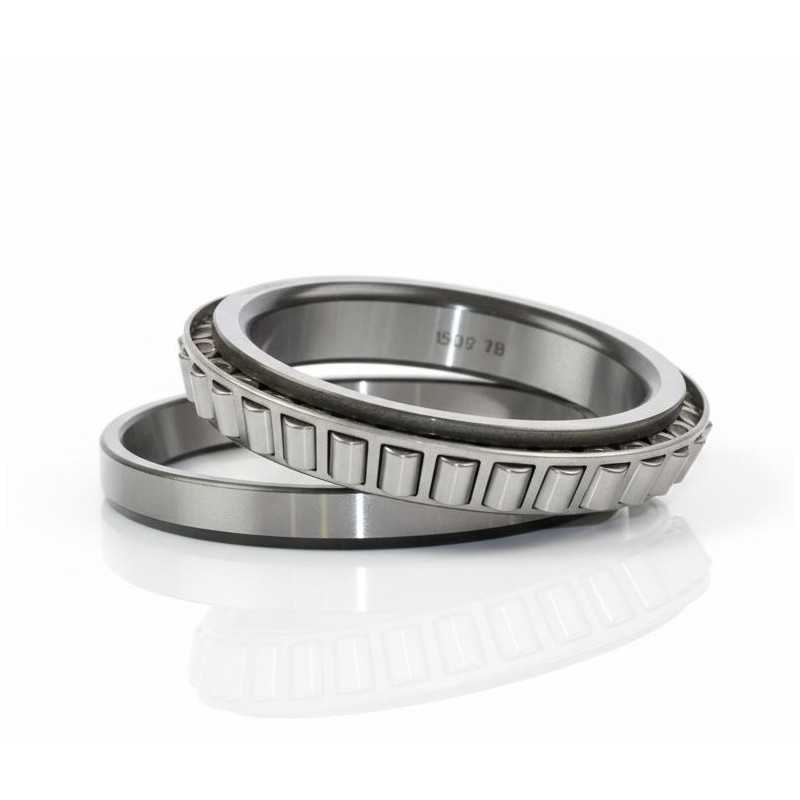

CBK339 RICH Single Row Tapered Roller Bearing – 107.95 × 158.75 × 23.02 mm

OE References:

• CASE XC566B
• CLAAS 6005019022
• JOHN DEERE JD8245 (Cup)
• JOHN DEERE JD8915 (Cone)
• JOHN DEERE NH 84072818
• MASSEY FERGUSON 1850909M91
• MASSEY FERGUSON 185251M1
• VALTRA 1850909

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: CBK339 RICH
• Inner Diameter (d): 107.95 mm
• Outer Diameter (D): 158.75 mm
• Total Width (T): 23.02 mm
• Inner Ring Width (B): 21.438 mm
• Outer Ring Width (C): 15.875 mm
• Weight: 1.331 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Single row radial-axial tapered roller bearing designed for heavy-duty agricultural and industrial machinery.
• Internal Geometry: High-precision rollers and optimized raceway profiles ensure efficient handling of combined radial and axial loads.
• Material Composition: Manufactured from high-carbon chromium steel to withstand the rigorous demands of large-scale equipment.
• Technical Application: Specifically engineered for components requiring high dimensional stability and load-bearing capacity, such as transmissions and axle assemblies.
• Dimensional Format: 107.95 × 158.75 × 23.02 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
