HM 803146/HM 803110 RICH 41,27x88,9x30,163
Rating:
(0)
EUR €
- EUR €
- USD $

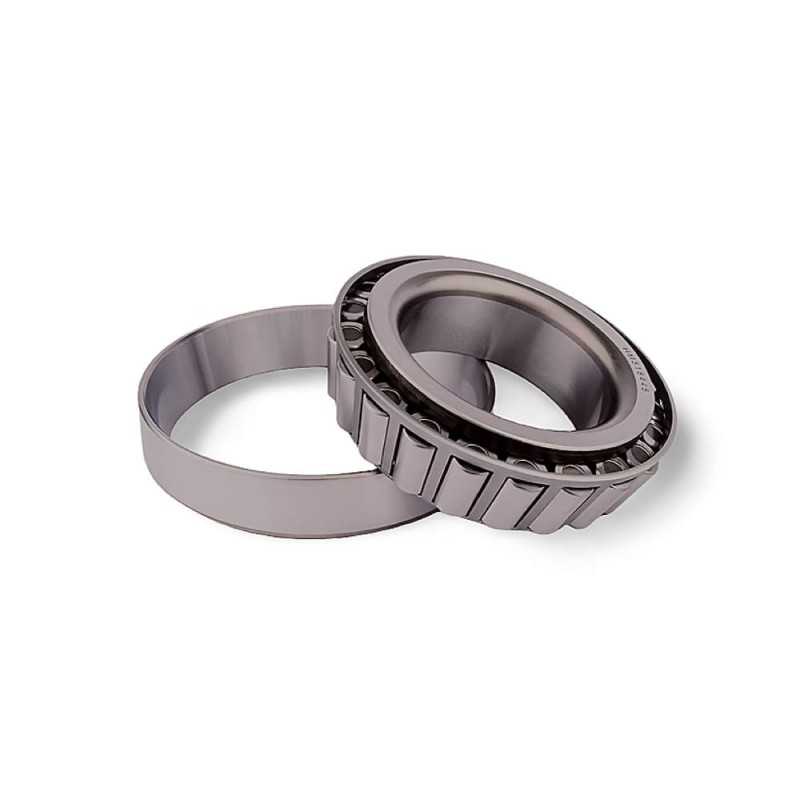

HM803146/10 RICH Single Row Tapered Roller Bearing - 41.27 x 88.9 x 30.162 mm
The HM803146/10 RICH is a single row tapered roller bearing engineered for reliable performance in agricultural machinery, supporting both radial and axial loads. This bearing has key dimensions of 41.27 mm inner diameter, 88.9 mm outer diameter, and a width of 30.162 mm. The outer ring width (C) measures 23.02 mm, while the inner ring width is 29.37 mm, with the total bearing width (T) also being 30.162 mm. It features inner ring rounding radius (R1) of 3.5 mm and outer ring rounding radius (R2) of 3.3 mm. It weighs 0.862 kg and is made in China. This bearing is known to be used in VLA9299 VALTRA equipment.
Key Specifications:
- Bearing Type: Single Row Tapered Roller Bearing
- Model:** HM803146/10 RICH
- Inner Diameter (d):** 41.27 mm
- Outer Diameter (D):** 88.9 mm
- Width (B/T):** 30.162 mm
- Outer Ring Width (C):** 23.02 mm
- Inner Ring Width:** 29.37 mm
- Rounding Radius (R1):** 3.5 mm
- Rounding Radius (R2):** 3.3 mm
- Weight:** 0.862 kg
- Known Applications: VALTRA VLA9299
- Country of Origin:** China
Key Features:
- Tapered Roller Design:** Efficiently handles combined radial and axial forces, crucial for agricultural equipment.
- Robust Construction:** Built to withstand the demanding conditions of agricultural use.
- Precise Dimensions:** Ensures proper fit and function in specified machinery.
- Rounding Radii:** Designed with specific inner and outer ring rounding radii for proper fit and function.
- Versatile Use:** Suitable for a range of agricultural equipment, particularly VALTRA equipment.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
41,27
Outer Diameter
88,9
Width
30,163
Category
Single Row Tapered Roller Bearing
