• New

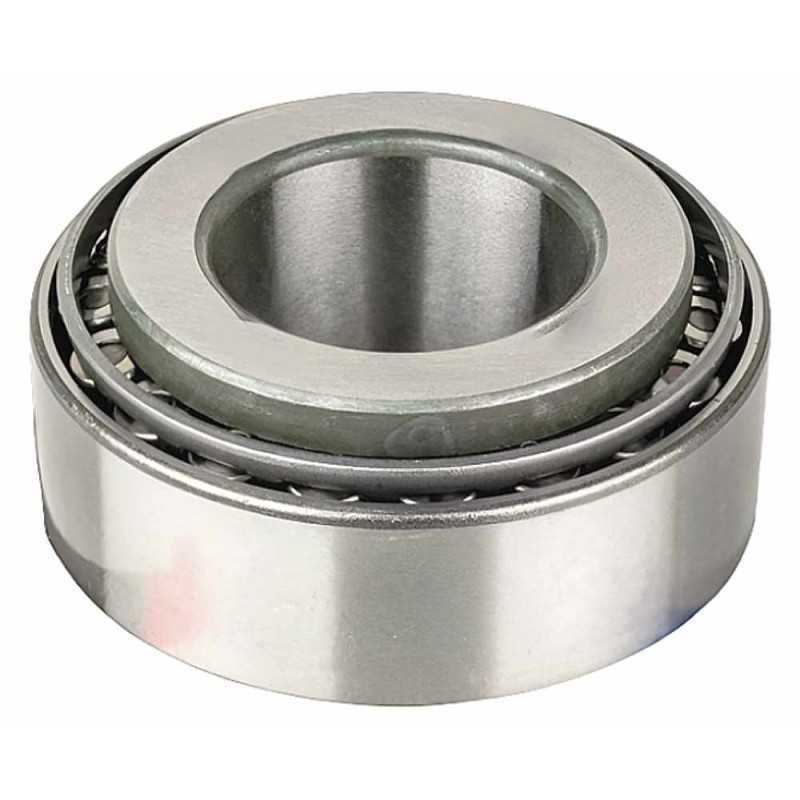

ST 4090-1 RICH 40x90x30/22 ST4090-1 RICH
zoom_out_map
ST 4090-1 RICH 40x90x30/22 ST4090-1 RICH

ST 4090-1 RICH 40x90x30/22

Type: Single Row Tapered Roller Bearing
Model: ST 4090-1 RICH
OE Reference: 1098122070 ISUZU
Dimensions: 40 x 90 x 30/22 mm
Brand: RICH
Origin: China
RICH
ST4090-1
€108.24
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

ST 4090-1 RICH – Single Row Tapered Roller Bearing – 40 x 90 x 30/22 mm

OE Reference:

  • ISUZU: 1098122070

Technical Specifications:

  • Type: Single row tapered roller bearing
  • Brand: RICH
  • Model Designation: ST 4090-1
  • Inner Diameter (d): 40 mm
  • Outer Diameter (D): 90 mm
  • Total Width (T): 30 mm
  • Outer Ring Width (C): 22 mm
  • Cage Material: Steel
  • Weight: 0.9 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Precision-engineered single-row tapered design featuring conical raceways optimized for handling high-capacity radial and axial loads.
  • Load Capability: Specifically designed for heavy-duty automotive drivetrain and differential systems, providing superior axial thrust support in a single direction.
  • Operational Stability: Equipped with a robust steel cage for precise roller guidance, ensuring uniform contact stress and reduced friction under high-torque conditions.
  • Mechanical Interface: 40 x 90 x 30/22 mm dimensional format built to rigorous industrial standards for direct compatibility with Isuzu original equipment.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
40
Outer Diameter
90
Width
30/22
Weight
0,94
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
