HM804848/804810 RICH 48,412x95,25x30,162

HM804848/804810 RICH – Tapered Roller Bearing – 48.412 x 95.25 x 30.162 mm

OE References:

• 3429676M1 MASSEY FERGUSON

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: HM804848/804810
• Inner Diameter (d): 48.412 mm
• Outer Diameter (D): 95.25 mm
• Total Width (T): 30.162 mm
• Inner Ring Width (B): 29.37 mm
• Outer Ring Width (C): 23.02 mm
• Weight: 0.981 kg
• Country of Origin: China

Product Details:

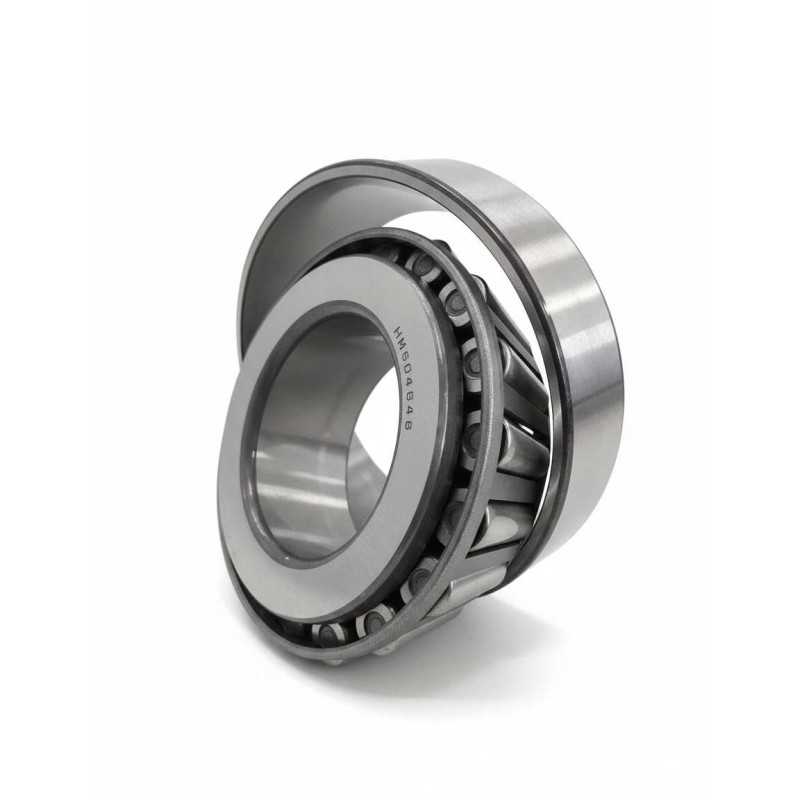

The bearing is built as a single row tapered roller unit with a separable configuration. It includes the HM804848 inner cone assembly with roller cage and the matching HM804810 outer cup. The dimensional layout follows a 48.412 mm inner diameter, 95.25 mm outer diameter, an inner ring width of 29.37 mm, an outer ring width of 23.02 mm, and a total assembled width of 30.162 mm.

Transparency Note: This bearing is manufactured under the RICH brand. OE and interchangeable references are provided solely for identification and do not imply affiliation with the original manufacturers.
