67787/67720 RICH 174,625x247,65x47,625

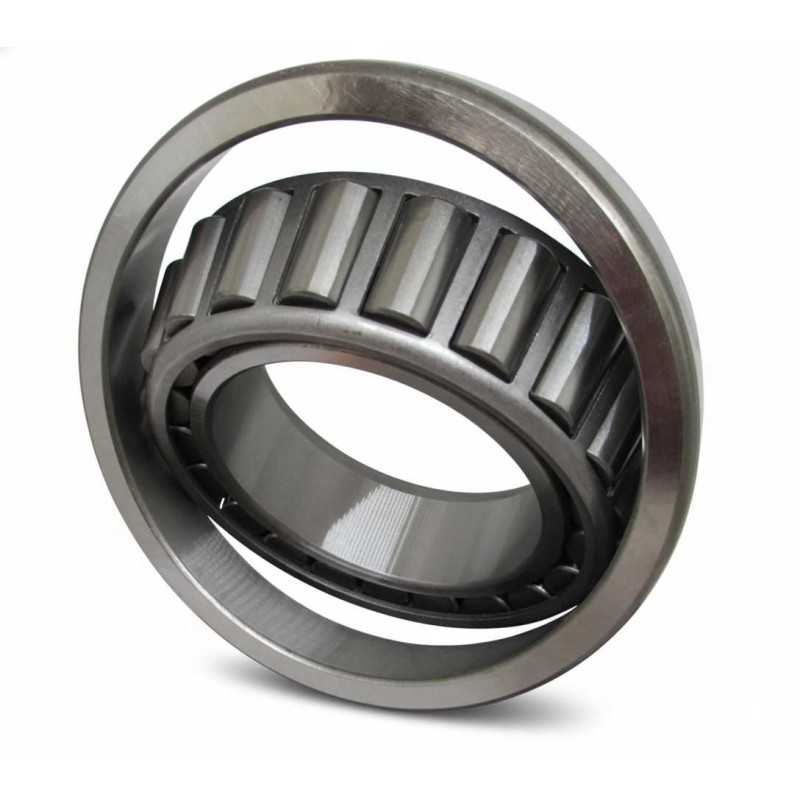

67787/67720 RICH – Single Row Tapered Roller Bearing – 174.6 x 247.6 x 47.625 mm

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: 67787/67720
• Inner Diameter (d): 174.6 mm
• Outer Diameter (D): 247.6 mm
• Total Width (T): 47.625 mm
• Inner Ring Width (B): 47.625 mm
• Outer Ring Width (C): 38.1 mm
• Rounding Radius (R1): 3.5 mm
• Cage Material: Steel
• Material: High-quality bearing steel
• Weight: 7.266 kg
• Country of Origin: China

Performance Characteristics:

• Load Management: Precision-engineered to accommodate heavy combined radial and axial loads in a single direction.
• Structural Composition: Features a robust steel cage designed to maintain optimal roller alignment and consistent lubrication flow during high-load operations.
• Mounting Profile: Separable components (cone and cup) allow for independent installation, simplifying the assembly process in complex machinery.
• Durability: Manufactured from high-strength steel to ensure operational stability and resistance to fatigue under significant mechanical stress.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
