JLM104948/49 RICH 50x82x24,5

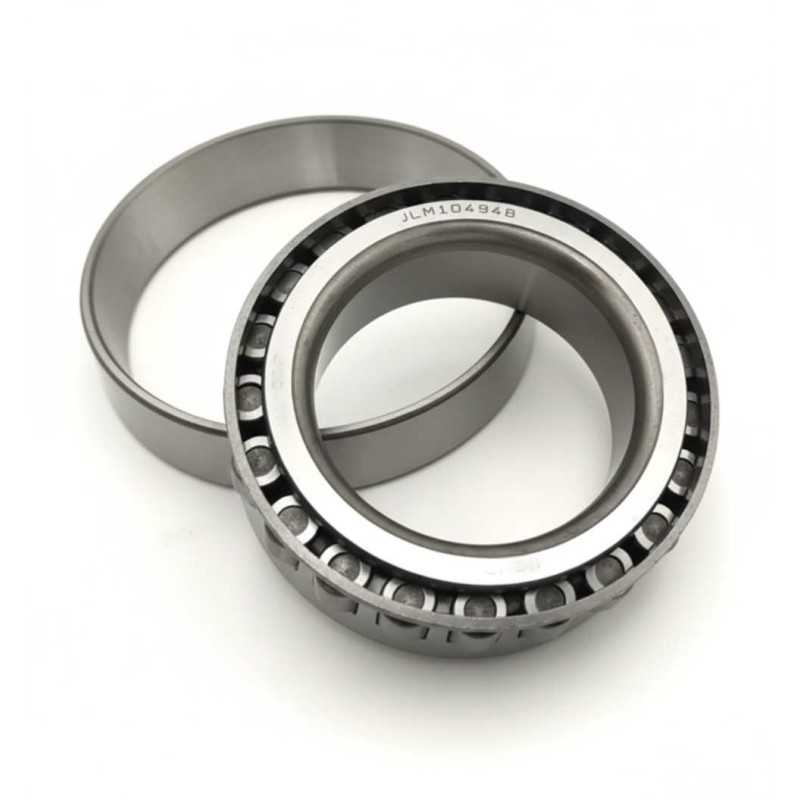

JLM104948/49 RICH – Tapered Roller Bearing – 50 x 82 x 24.5 mm

OE References:

• JLM104948/NP658549 TIMKEN

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: JLM104948/49
• Inner Diameter (d): 50 mm
• Outer Diameter (D): 82 mm
• Total Width (T): 24.5 mm
• Inner Ring Width (B): 21.501 mm
• Outer Ring Width (C): 20 mm
• Rounding Radius (R1): 3 mm
• Weight: 0.465 kg
• Country of Origin: China

Product Details:

• Separable Components: Modular structure consisting of an inner ring assembly with rollers and cage (JLM104948 cone) and a separate matching outer ring (JLM104949 cup).
• Row Configuration: Internal design based on a single row of tapered rolling elements aligned by a guiding cage.
• Dimensional Format: Geometric layout defined by specified inner bore, outer diameter, individual ring widths, rounding radius profile, and total assembled width.

Transparency Note: This bearing is manufactured under the RICH brand. OE and interchangeable references are provided solely for identification and do not imply affiliation with the original manufacturers.
