EC43960S01 RICH 48x85x17/12,2

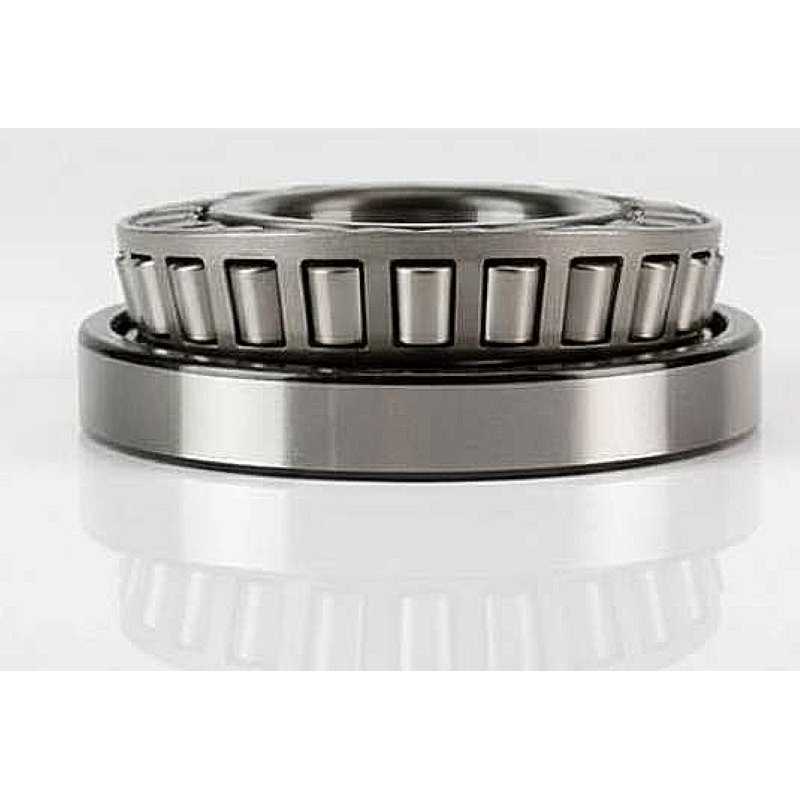

EC43960S01 RICH – Tapered Roller Bearing – 48 x 85 x 17 mm

OE References:

• 2113500849 MERCEDES-BENZ
• 2049800302 MERCEDES-BENZ
• A2113500349 MERCEDES-BENZ
• CR-10A22ST NTN
• EC0-CR-10A22STPX2 NTN

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: EC43960S01
• Inner Diameter (d): 48 mm
• Outer Diameter (D): 85 mm
• Total Width (T): 17 mm
• Inner Ring Width (B): 17 mm
• Outer Ring Width (C): 12.2 mm
• Weight: 0.375 kg
• Cage Material: Steel
• Country of Origin: China

Product Details:

• Separable Components: Modular structure consisting of an inner ring assembly with rollers and steel cage (cone) and a separate matching outer ring (cup).
• Row Configuration: Internal design based on a single row of tapered rolling elements aligned by a steel guiding cage.
• Dimensional Format: Geometric layout defined by a 48 mm inner bore, 85 mm outer diameter, 12.2 mm outer ring width, and a total assembled width of 17 mm.

Transparency Note: This bearing is manufactured under the RICH brand. OE and interchangeable references are provided solely for identification and do not imply affiliation with the original manufacturers.
