HM911245/911210 RICH 60,325x130,175x36,512

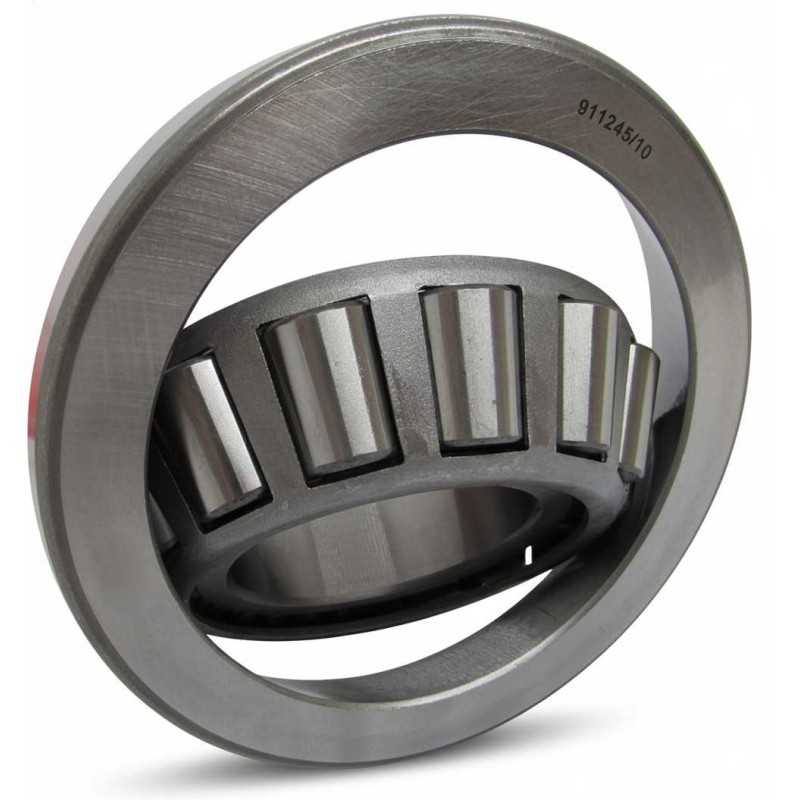

HM911245/911210 RICH – Single Row Tapered Roller Bearing – 60.325 x 130.175 x 36.512 mm

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: HM911245/911210
• Inner Diameter (d): 60.325 mm
• Outer Diameter (D): 130.175 mm
• Total Width (T): 36.512 mm
• Inner Ring Width (B): 31.4 mm
• Outer Ring Width (C): 23.812 mm
• Cage Material: Steel
• Sealing: Open
• Weight: 2.023 kg
• Country of Origin: China

Product Details:

• Components: Comprises an HM911245 cone (inner ring assembly including integrated rollers and steel cage) paired with a separable HM911210 cup (outer ring).
• Internal Geometry: Engineered with optimized heavy-duty tapered angles on the cup, cone, and rolling elements, enabling the setup to sustain substantial combined radial and unidirectional thrust load distributions simultaneously.
• Dimensional Set: Imperial-based configuration engineered to precise boundary measurements of 60.325 mm inner bore, 130.175 mm outside casing diameter, and 36.512 mm total assembled width.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
