32304 RICH 20x52x22,25 32304 RICH
search
  • 32304 RICH 20x52x22,25 32304 RICH

32304 RICH 20x52x22,25

RICH
32304
€1.97
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

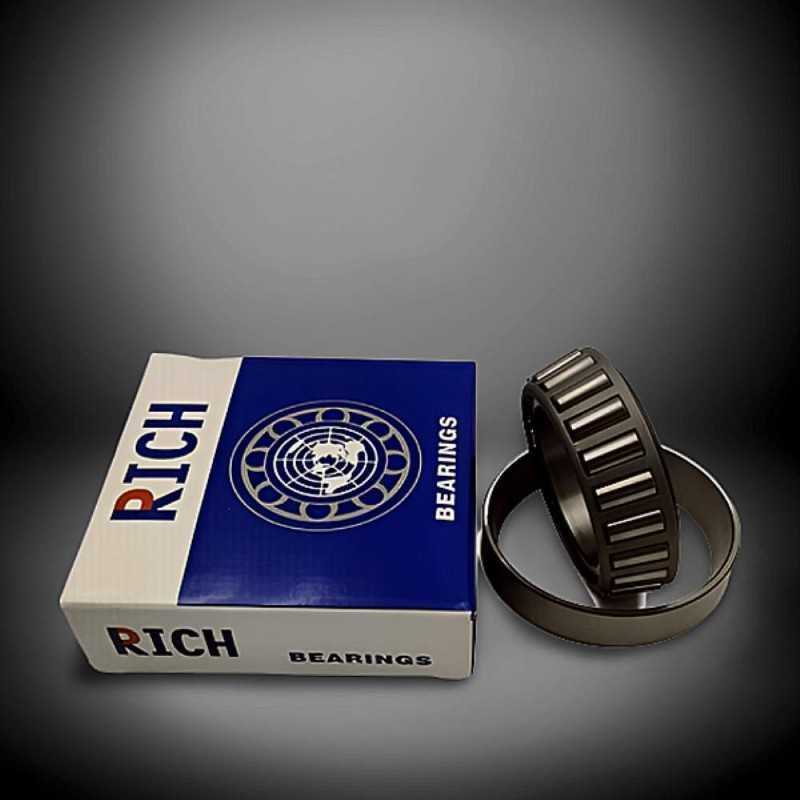

32304 RICH Single Row Tapered Roller Bearing - 20 x 52 x 22.25 mm

The 32304 RICH is a single row tapered roller bearing designed to accommodate combined radial and axial loads. This bearing has key dimensions of 20 mm inner diameter, 52 mm outer diameter, and a width (T) of 22.25 mm. The outer ring width (C) is 18 mm and the inner ring width is 21 mm. It weighs 0.228 kg. This bearing type, with its tapered rollers and conical raceways, is well-suited for applications requiring support for both high radial and axial loads in one direction. Due to its internal construction, single row tapered roller bearings are typically mounted in pairs with a second tapered roller bearing.

Key Specifications:

  • Bearing Type: Single Row Tapered Roller Bearing
  • Model:** 32304 RICH
  • Inner Diameter (d):** 20 mm
  • Outer Diameter (D):** 52 mm
  • Width (T):** 22.25 mm
  • Outer Ring Width (C):** 18 mm
  • Inner Ring Width:** 21 mm
  • Weight:** 0.228 kg

Key Features:

  • Tapered Roller Design:** Optimized for combined radial and axial loads.
  • Separable Components:** The inner ring assembly (cone) and outer ring (cup) can be mounted separately.
  • Adjustable Clearance:** The axial clearance can be adjusted during mounting.
  • Robust Construction:** Capable of withstanding significant forces.
  • Versatile Application:** Used in various applications such as automotive axles, gearboxes, and industrial machinery. Typically used in pairs.

Data sheet

Inner Diameter
20
Outer Diameter
52
Width
22,25
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
