LM29748/LM29710 RICH 38,1x65,088x18,034 LM29748/LM29710 RICH
zoom_out_map
LM29748/LM29710 RICH 38,1x65,088x18,034 LM29748/LM29710 RICH

LM29748/LM29710 RICH 38,1x65,088x18,034

Type: Single Row Tapered Roller Bearing
Model: LM29748/10 RICH
Dimensions: 38.1 x 65.088 x 18.034 mm
Brand: RICH
Origin: China
RICH
LM29748/LM29710
€2.13
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

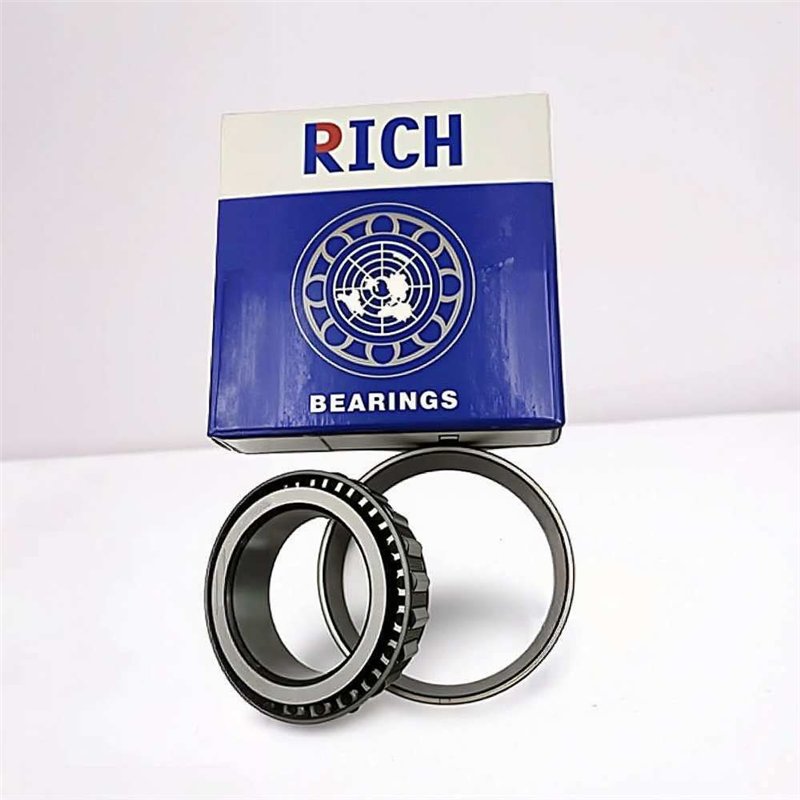

LM29748/10 RICH Single Row Tapered Roller Bearing – 38.1 x 65.088 x 18.034 mm

The LM29748/10 RICH is a single row tapered roller bearing with an inner diameter of 38.1 mm, an outer diameter of 65.088 mm and a total width of 18.034 mm. The outer ring width (C) is 13.97 mm and the inner ring width is 18.288 mm. The bearing weighs 0.23 kg and is manufactured in China.

Key Specifications

  • Bearing Type: Single Row Tapered Roller Bearing
  • Model: LM29748/10 RICH
  • Inner Diameter (d): 38.1 mm
  • Outer Diameter (D): 65.088 mm
  • Total Width (T/B): 18.034 mm
  • Outer Ring Width (C): 13.97 mm
  • Inner Ring Width: 18.288 mm
  • Weight: 0.23 kg
  • Country of Origin: China

Technical Notes

  • Tapered roller geometry suitable for combined radial and axial loads.
  • Dimensional profile according to LM29748/10 standard.
  • Suitable for industrial and mechanical applications requiring tapered roller bearings.

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
38,1
Outer Diameter
65,088
Width
18,034
Weight
0,234
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
