303/28 RICH 28x68x19,75 303/28 RICH
zoom_out_map
303/28 RICH 28x68x19,75 303/28 RICH

303/28 RICH 28x68x19,75

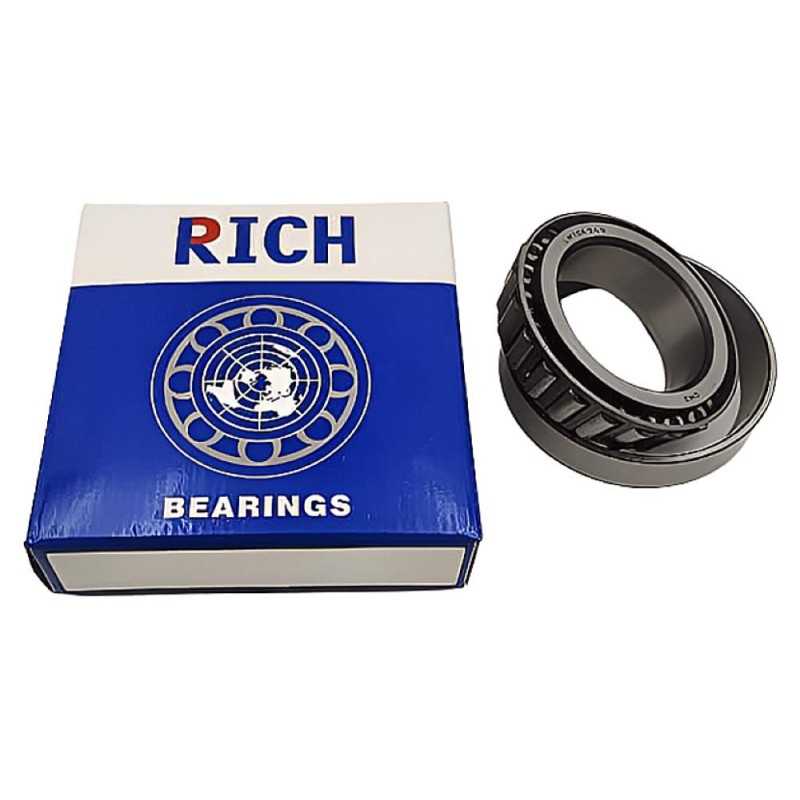

Type: Single Row Tapered Roller Bearing
Model: 303/28 RICH
Dimensions: 28 x 68 x 19.75 mm
Features: Conical Raceways, Separable Design, High Load Support
Brand: RICH
Origin: China
RICH
303/28
€3.04
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

303/28 RICH – Single Row Tapered Roller Bearing – 28 x 68 x 19.75 mm

Technical Specifications:

  • Type: Single row tapered roller bearing
  • Brand: RICH
  • Model Designation: 303/28
  • Inner Diameter (d): 28 mm
  • Outer Diameter (D): 68 mm
  • Total Width (T): 19.75 mm
  • Inner Ring Width (B): 18 mm
  • Outer Ring Width (C): 15 mm
  • Weight: 0.372 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Features tapered rollers and conical raceways, specifically engineered to accommodate combined radial and axial loads simultaneously.
  • Load Capability: Optimized for high-load environments where axial thrust is applied in a single direction; typically mounted in pairs to manage bi-directional axial forces.
  • Design Efficiency: The separable components (cup and cone) allow for independent mounting and simplified maintenance in industrial and automotive applications.
  • Mechanical Interface: 28 x 68 x 19.75 mm dimensional format manufactured according to industrial precision tolerances for high-performance load management.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
28
Outer Diameter
68
Width
19,75
Weight
0,372
Roller Rows
Single Row
Category
Single Row Tapered Roller Bearing
