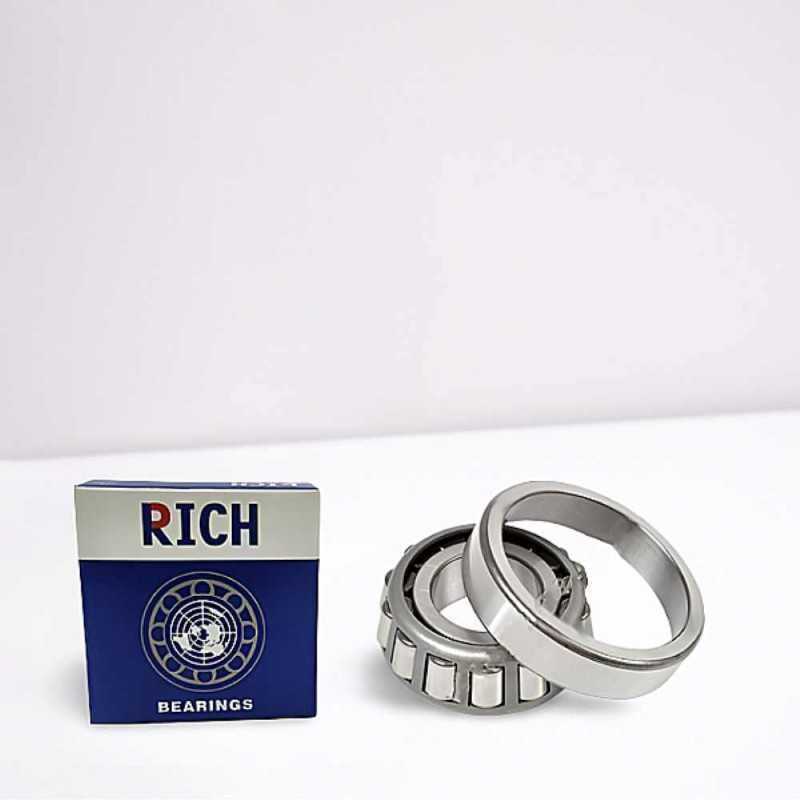

HM801346X/10 RICH Single Row Tapered Roller Bearing – 38.1 × 82.55 × 29.37 mm
OE References:
- VW 183525261
- ROVER 539706
Technical Specifications:
- Type: Single row tapered roller bearing
- Brand: RICH
- Model Designation: HM801346X/10 RICH
- Inner Diameter (d): 38.1 mm
- Outer Diameter (D): 82.55 mm
- Total Width (T): 29.37 mm
- Inner Ring Width (B): 28.575 mm
- Outer Ring Width (C): 23.02 mm
- Rounding Radius (R1): 2.3 mm
- Rounding Radius (R2): 3.3 mm
- Weight: 0.773 kg
- Country of Origin: China
Performance Characteristics:
- Structural Layout: High-capacity single row tapered roller bearing designed to support heavy combined radial and axial loads.
- Material Composition: Constructed from high-carbon chromium steel for enhanced surface hardness and superior mechanical fatigue resistance.
- Design Feature: Precision-engineered with specific rounding radii (R1: 2.3 mm, R2: 3.3 mm) for accurate seating and stress distribution in heavy-duty assemblies.
- Operational Logic: Optimized for automotive and industrial applications requiring precise shaft guidance and reliable performance under high-torque conditions.
- Dimensional Format: 38.1 × 82.55 × 29.37 mm configuration, adhering to standard imperial-to-metric conversion specifications.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
