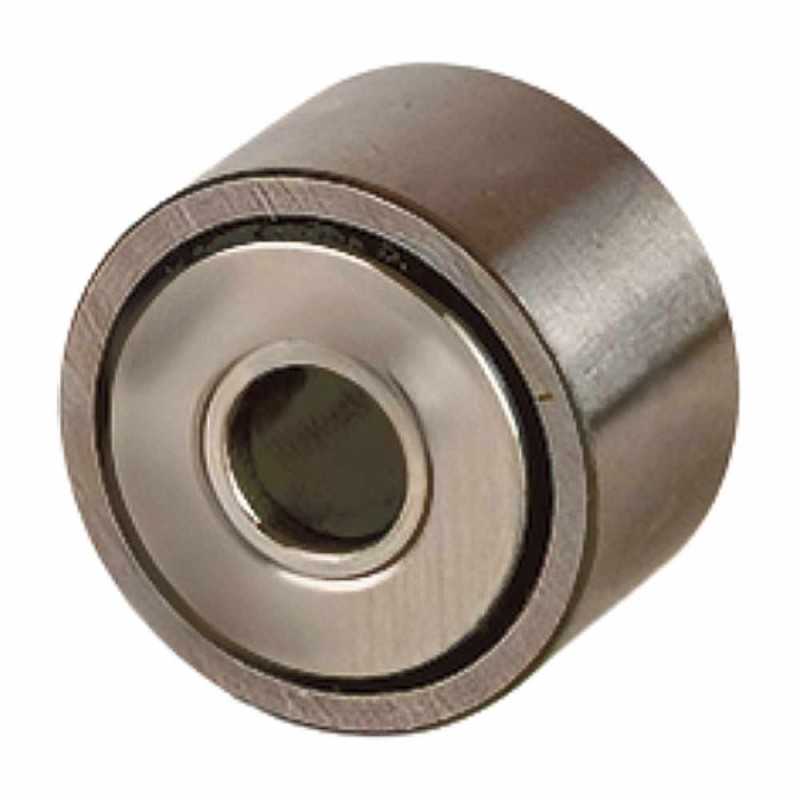

NART35UUX RICH Yoke Roller - 35 x 72 x 29 mm

The NART35UUX RICH is a heavy-duty yoke roller specifically designed for applications requiring high radial load capacity on flat running surfaces. This bearing features a robust steel cage and a cylindrical (flat) outer ring, which provides maximum contact with the track, ensuring high load distribution and reduced stress. The double-sided rubber contact seals offer excellent protection against the ingress of dirt, dust, and moisture, ensuring the internal components and lubricant are shielded in demanding environments. This yoke roller is an excellent choice for applications such as cam drives, conveyor systems, and linear guides with flat tracks.

Technical Specifications:

  • Brand: RICH
  • Type: Yoke Roller
  • Dimensions: 35 x 72 x 29 mm
  • Outer Ring Width (C): 28 mm
  • Weight: 0.64 kg
  • Cage: Steel
  • Outer Ring Profile: Cylindrical (not rounded)
  • Sealing: Double-sided rubber, contact
  • Country of Origin: China

Key Performance Advantages:

  • High Load Capacity: The cylindrical outer ring provides a larger contact area for maximum load distribution on flat tracks.
  • Effective Sealing: Double-sided contact seals provide robust protection against contaminants, extending service life.
  • Robust Construction: Features a durable steel cage for reliable operation in rigorous applications.
  • Optimized for Flat Tracks: The flat outer ring design is ideal for applications where misalignment is not a factor and maximum contact area is desired.

Data sheet

Inner Diameter
35
Outer Diameter
72
Width
29
Cage
Steel
Category
Yoke Roller
