PWTR 15-2RS RICH 15x35x19

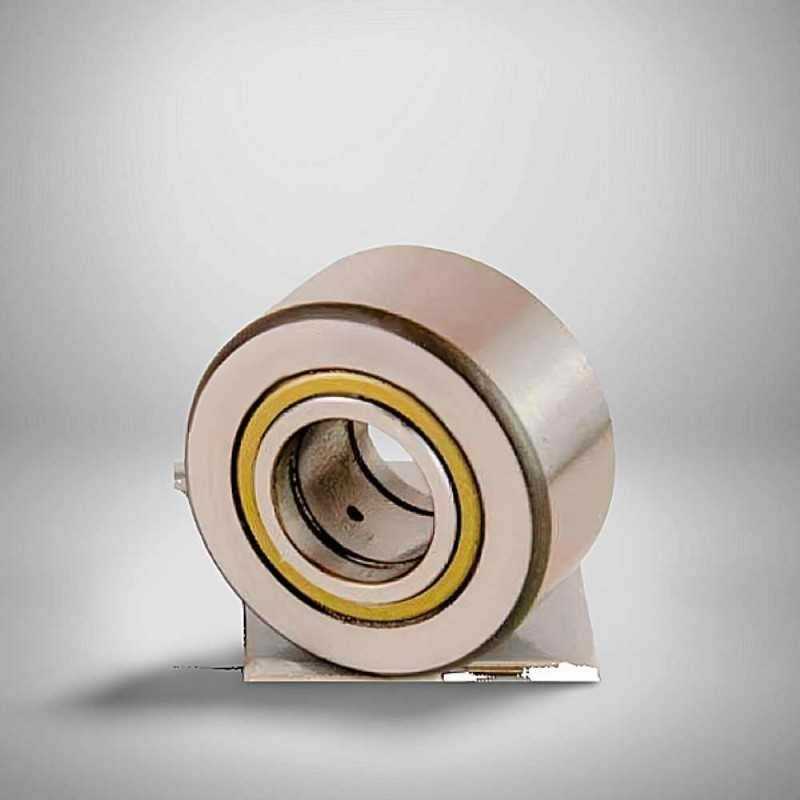

PWTR 15-2RS RICH Yoke Type Track Roller - 15x35x19 mm

Technical Specifications:

• Catalog Code: PWTR 15-2RS RICH
• Brand: RICH
• Type: Yoke type track roller (Double row cylindrical rollers)
• Dimensions: 15 mm (ID) x 35 mm (OD) x 19 mm (Total Width)
• Outer Ring Width (C): 18 mm
• Sealing: 2RS (Double-sided contact rubber seals)
• Outer Ring Profile: Rounded / Crowned
• Cage: None (Full complement of rollers)
• Weight: 0.096 kg
• Country of Origin: China

Product Overview:

The PWTR 15-2RS RICH is a high-performance yoke type track roller designed for heavy radial loads and axial loads resulting from slight misalignments. Based on a double-row full complement cylindrical roller design, this unit lacks a cage, allowing for a maximum number of rollers to achieve superior load-carrying capacity. The outer ring features a crowned (rounded) profile, which helps distribute the pressure evenly and prevents edge stresses when operating on tracks that may not be perfectly aligned. The "2RS" designation indicates that the roller is equipped with high-quality contact rubber seals on both sides, providing excellent protection against dust, moisture, and contaminants while effectively retaining the internal grease. This makes it an ideal choice for cam drives, conveyor systems, and various material handling equipment operating in demanding environments. Manufactured with precision-grade steel, the PWTR 15-2RS ensures smooth rotation and a long service life under heavy duty cycles.

Key Performance Advantages:

• Full Complement Design: Lacks a cage to maximize the number of rollers, significantly increasing the static and dynamic load ratings.
• Crowned Outer Ring: The rounded profile reduces edge loading and extends the life of both the roller and the mating track.
• Contact Sealing (2RS): Robust rubber seals protect the internal components from harsh contaminants and prevent lubricant leakage.
• Double Row Stability: Provides high radial stability and can accommodate axial forces better than single-row variants.

Transparency Note: This product is manufactured under the RICH brand. The code PWTR 15-2RS is used for identification and interchange purposes and does not imply affiliation with other manufacturers.
