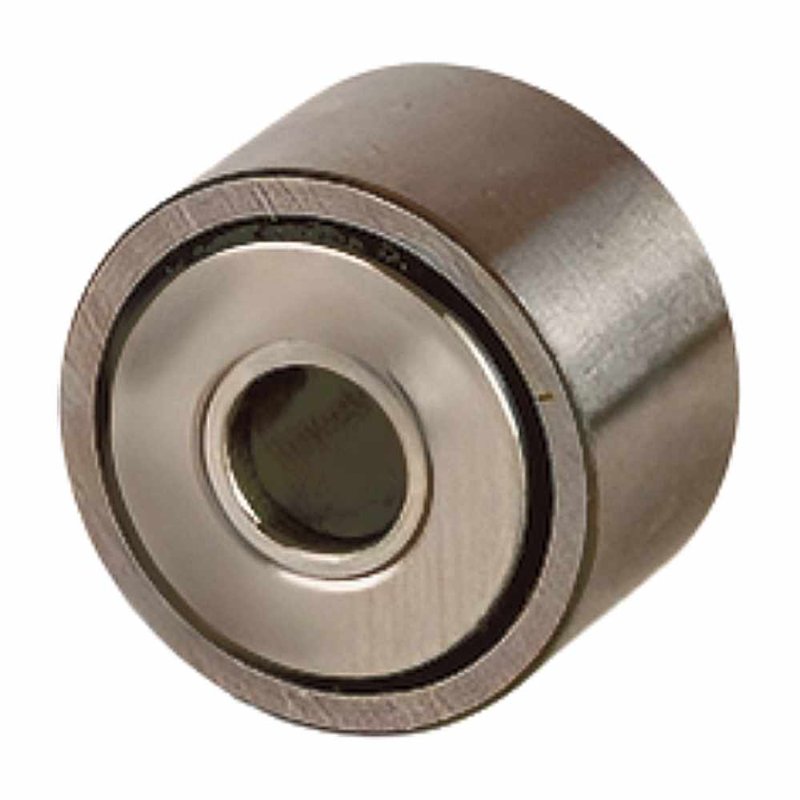

NART20UUVR RICH Yoke Roller - 20 x 47 x 25 mm

Technical Specifications:

  • Brand: RICH
  • Type: Yoke Roller
  • Dimensions: 20 x 47 x 25 mm
  • Outer Ring Width (C): 24 mm
  • Weight: 0.257 kg
  • Cage: None (Full Complement)
  • Outer Ring Profile: (Rounded)
  • Sealing: Double-sided rubber, contact
  • Country of Origin: China

The NART20UUVR RICH is a heavy-duty yoke roller designed for applications requiring exceptionally high radial load capacity. This bearing is a full complement design, which means it has no cage and is filled with the maximum number of rollers, allowing it to withstand significantly higher loads than caged counterparts. It features a spherical (rounded) outer ring, which is crucial for accommodating minor misalignments and reducing stress on the application. The double-sided rubber contact seals provide excellent protection against the ingress of dirt, dust, and moisture, ensuring the bearing's longevity and smooth operation in demanding environments.

Key Performance Advantages:

  • Extremely High Load Capacity: The full complement design allows for maximum radial load resistance.
  • Effective Sealing: Double-sided contact seals provide robust protection against contaminants, extending service life.
  • Misalignment Tolerance: The rounded outer ring allows for compensation of minor mounting misalignments.
  • Robust Construction: Built to withstand rigorous applications with its cage-less, heavy-duty design.

Data sheet

Inner Diameter
20
Outer Diameter
47
Width
25
Category
Yoke Roller
