NUKRE52 RICH 24x52x24

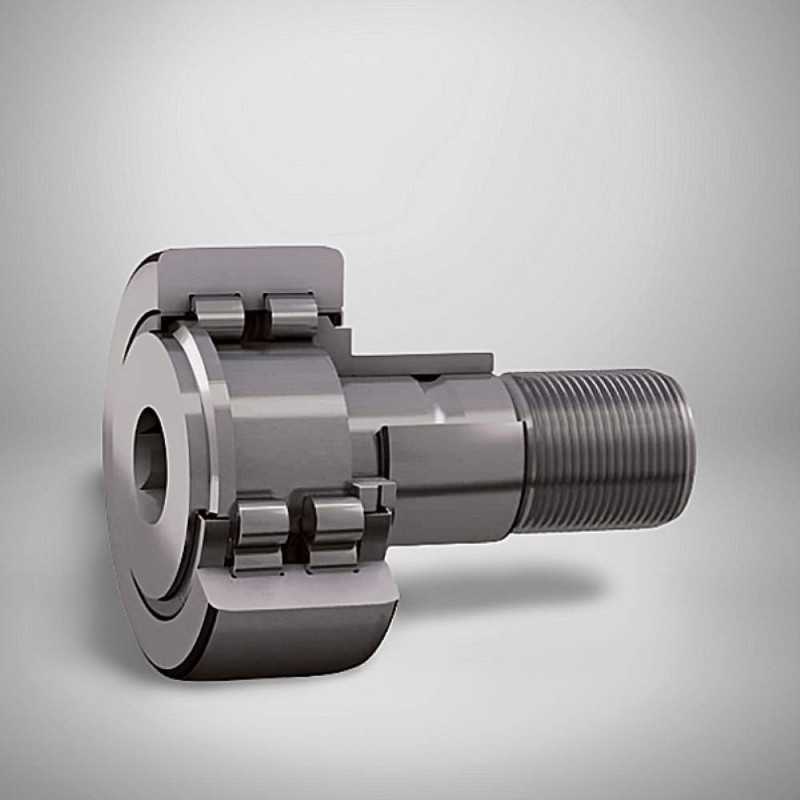

NUKRE52 RICH – 24x52x24 mm – Eccentric Stud Type Track Roller – Rounded Outer Ring with Labyrinth Seals

Technical Specifications:

• Type: Eccentric Stud Type Track Roller
• Brand: RICH
• Model Designation: NUKRE52 RICH
• Stud Diameter: 24 mm
• Outer Diameter (D): 52 mm
• Roller Width (B): 24 mm
• Overall Stud Length (B1): 66 mm
• Thread: M20x1.5
• Cage: None (Full Complement)
• Rounded Outer Ring: Yes
• Sealing: Labyrinths on both sides, for higher temperatures and less friction.
• Weight: 0.47 kg
• Country of Origin: China

The NUKRE52 RICH eccentric stud type track roller is a high-performance component engineered for precise and robust guidance in linear motion systems, cam mechanisms, and conveyor applications. Manufactured by RICH, this track roller features dimensions of 24x52x24 mm (stud diameter x outer diameter x roller width), an overall stud length of 66 mm, and weighs 0.47 kg, offering reliable and smooth operation.

A key feature of the NUKRE52 RICH is its eccentric stud, which allows for precise adjustment of the roller's position relative to the track, enabling fine-tuning of clearance or pre-load. The rounded outer ring ensures smooth running with reduced edge stresses, particularly when operating on flat tracks or against rails, contributing to quieter operation and extended track life. This track roller incorporates labyrinth seals on both sides, providing effective protection against contaminants while ensuring lower friction and suitability for higher operating temperatures compared to contact seals. The design without a cage (full complement of rollers) maximizes the load-carrying capacity, making it highly resilient under heavy radial loads. Equipped with an M20x1.5 thread, it offers secure and easy mounting. Proudly produced in China, the NUKRE52 RICH track roller guarantees consistent quality, high efficiency, and exceptional durability, making it an excellent choice for a wide range of industrial machinery where precise guidance, high load capacity, and robust sealing are crucial.

Key Advantages:

• Eccentric Stud: Allows for precise adjustment and fine-tuning of the roller position.
• Rounded Outer Ring: Ensures smooth running, reduced stress, and quieter operation on tracks.
• Labyrinth Sealing: Provides robust contamination protection with low friction, suitable for higher temperatures.
• High Load Capacity: Full complement design maximizes radial load-carrying capability.
• A RICH product, symbolizing consistent quality and reliable performance, made in China.
