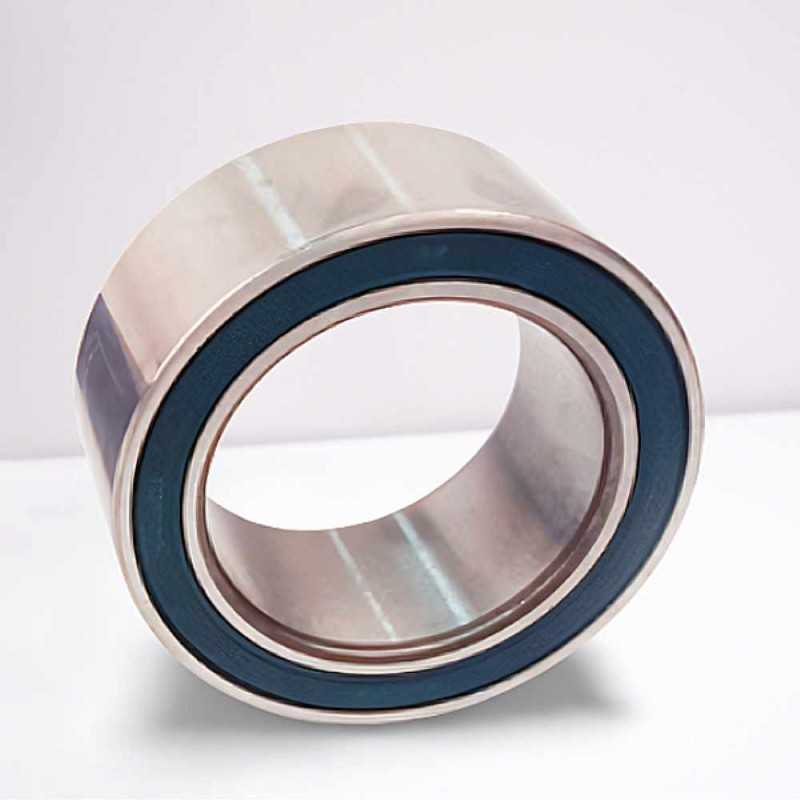

30BG04S13G RICH Double Row Angular-Contact Ball Bearing - A/C Clutch - 30 x 47 x 22 mm

Interchange Reference: 30BG04S13G-2DST2

Technical Specifications:

  • Brand: RICH
  • Type: Double Row Angular-Contact Ball Bearing
  • Model: 30BG04S13G
  • Feature: Air Conditioner Bearing
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 47 mm
  • Width (B): 22 mm
  • Dimensions: 30 x 47 x 22 mm
  • Sealing: Two-sided rubber
  • Weight: 0.113 kg
  • Country of Origin: China

Product Overview

The 30BG04S13G RICH is a specialized **Double Row Angular-Contact Ball Bearing** specifically engineered for use in automotive **Air Conditioner (A/C) compressor clutches**. Manufactured by RICH, this unit is built to withstand the unique, harsh conditions of the clutch application, including sudden load engagement, high radial forces, and elevated temperatures.

As an **A/C compressor bearing**, it utilizes a **double row angular contact design** to efficiently handle the combined radial and bidirectional axial loads generated by the clutch pulley. It features **two-sided rubber, non-contact seals** (often designated 2RSL or similar). These seals provide crucial protection against dust and moisture while minimizing drag and allowing for higher rotational speeds compared to contact seals. With precise dimensions of 30 x 47 x 22 mm, the 30BG04S13G RICH offers a high-quality, direct interchange for references like the Nachi 30BG04S13G-2DST2, ensuring quiet and dependable operation of your vehicle's air conditioning system.

Key Performance Advantages:

  • Specialized A/C Application: Engineered to manage the specific loads and intermittent duty cycle of an A/C clutch pulley.
  • Non-Contact Sealing: Provides adequate contamination protection while reducing friction for cooler, higher-speed operation.
  • Combined Load Handling: Double row configuration efficiently supports the heavy radial and axial forces.
  • Precision Fit: Manufactured to exact OE specifications (30x47x22 mm) for direct interchangeability.

Transparency Note

The 30BG04S13G bearing is manufactured by RICH in China to meet stringent quality and dimensional standards, ensuring reliable interchangeability and performance.

Data sheet

Inner Diameter
30
Outer Diameter
47
Width
22
Weight
0,113
Ball Rows
Double Row
Category
Double Row Angular-Contact Ball Bearing
