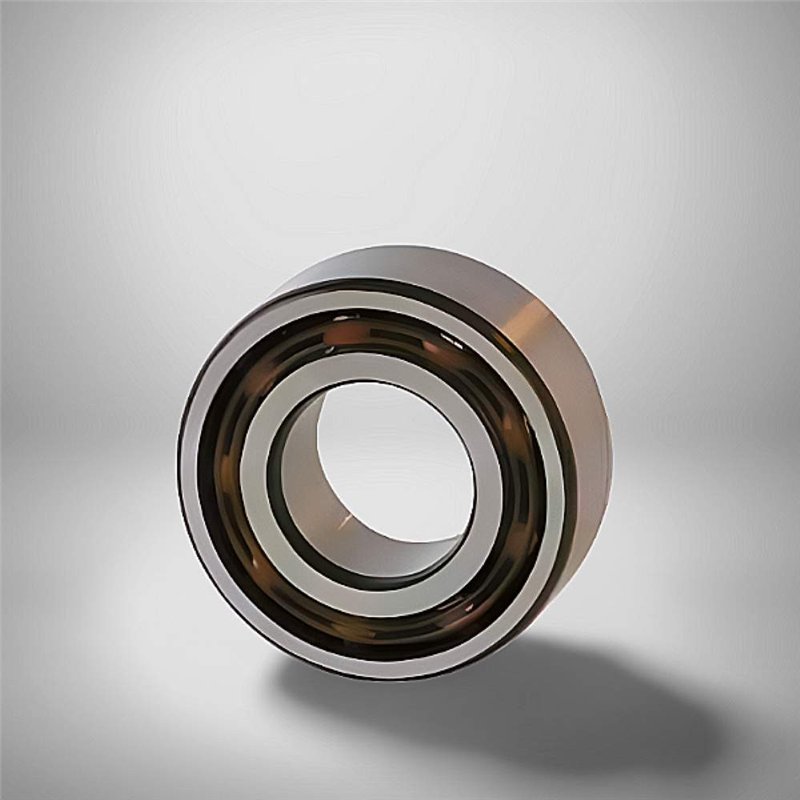

3209 TV RICH Double Row Angular Contact Ball Bearing - 45 x 85 x 30.2 mm
Technical Specifications:
- Catalog Code: 3209 TV RICH
- Brand: RICH
- Type: Double row angular contact ball bearing
- Inner Diameter: 45 mm
- Outer Diameter: 85 mm
- Width: 30.2 mm
- Cage: Polyamide (TV)
- Clearance: CN (Normal clearance)
- Sealing: None (Open)
- Weight: 0.653 kg
- Country of Origin: China
Key Performance Advantages:
- Bi-Directional Axial Support: The RICH double-row configuration provides robust support for axial loads in both directions, making it ideal for gearboxes and industrial drive units.
- High-Speed Polyamide Cage: The fiberglass-reinforced polyamide cage (TV) is lightweight and offers superior sliding properties, reducing heat generation and noise during high-speed rotation.
- Space-Efficient Design: This bearing provides the same rigidity and load capacity as a pair of single-row bearings while occupying significantly less axial space on the shaft.
- High Radial Rigidity: The optimized internal contact angles offer a rigid bearing arrangement capable of resisting tilting moments and ensuring precise shaft guidance.
- Industrial Reliability: Manufactured from high-grade carbon chromium steel, the 3209 TV RICH is engineered for durability and consistent performance in demanding mechanical environments.
Transparency Note: This bearing is manufactured under the RICH brand. The code 3209 TV is used solely for identification and does not imply affiliation with other manufacturers.
