7317 BM RICH 85x180x41

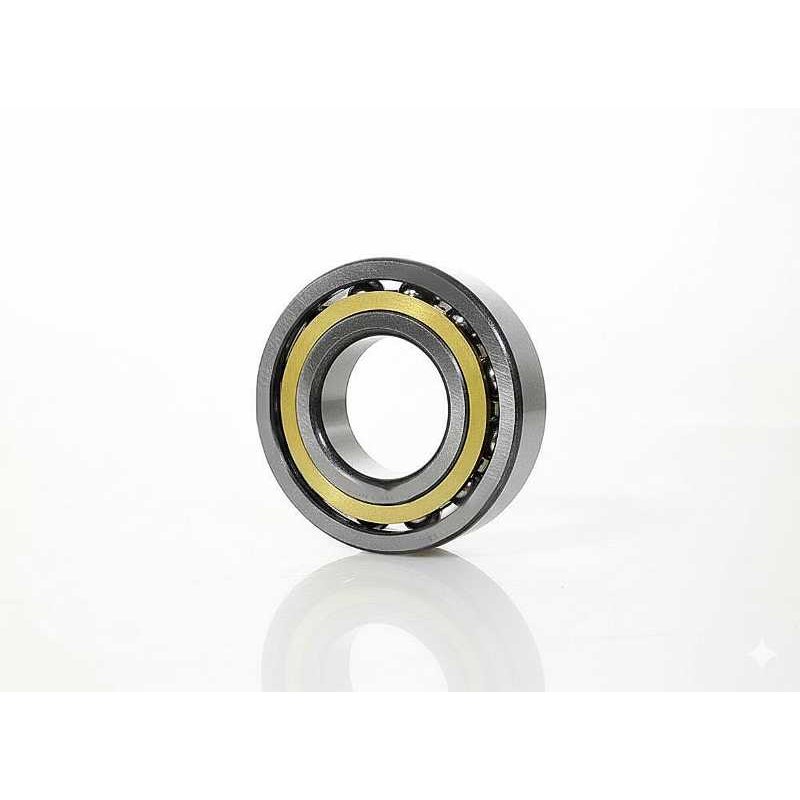

7317 BM RICH Single Row Angular Contact Ball Bearing – 85 × 180 × 41 mm

Technical Specifications:

• Brand: RICH
• Type: Single row angular contact ball bearing
• Model: 7317 BM RICH
• Inner Diameter (d): 85 mm
• Outer Diameter (D): 180 mm
• Width (B): 41 mm
• Contact Angle: 40° (B)
• Cage: Machined brass (M), guided by rolling elements
• Sealing: Open Type (None)
• Weight: 4.54 kg
• Country of Origin: China

Performance Characteristics:

• Contact Angle (40°): High axial load carrying capacity in one direction.
• Machined Brass Cage (M): Enhanced structural stability under high-speed and heavy-load conditions.
• Angular Contact Architecture: Designed for combined radial and axial load support.
• Open Design: Suitable for oil-bath or grease-circulating lubrication systems.

7317 BM RICH is a single row angular contact ball bearing with a 40° contact angle and a machined brass cage guided by the rolling elements. Dimensional and structural characteristics correspond to the 85 × 180 × 41 mm specification.

Additional Technical Data:

• Designation: 7317 BM
• Bore Type: Cylindrical
• Material: Bearing steel
• Configuration: Single row

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with other manufacturers.
