F-563575.07 RICH 36,5x81,3x33 F-563575.07 RICH
zoom_out_map
F-563575.07 RICH 36,5x81,3x33 F-563575.07 RICH

F-563575.07 RICH 36,5x81,3x33

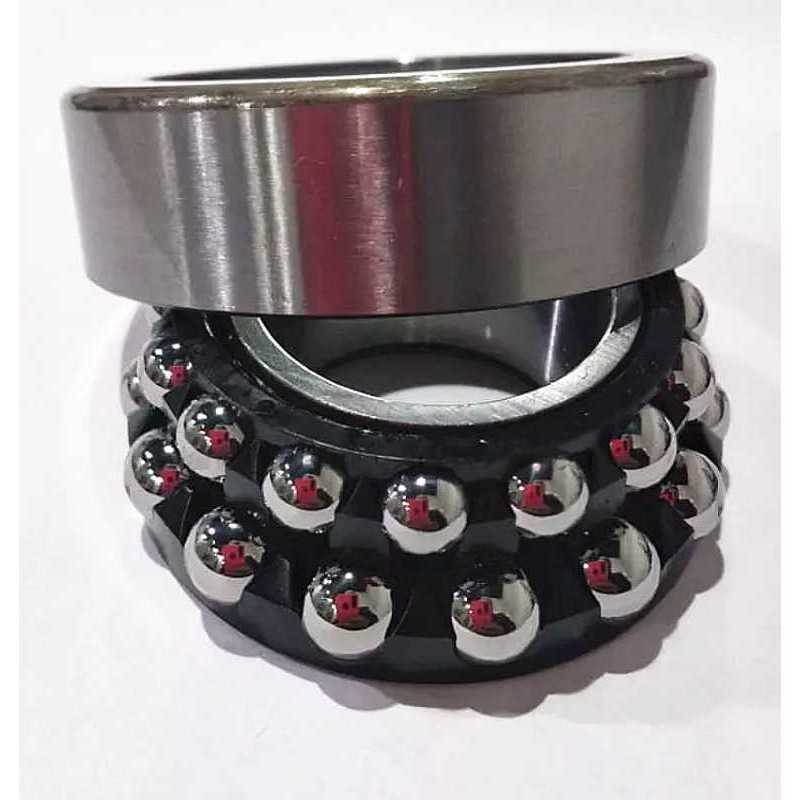

The RICH F‑563575.07 double row angular‑contact ball bearing, sized 36.5 x 81.3 x 33 mm, features a polyamide cage and wide ring geometry for enhanced rigidity. Designed for applications requiring stable support under combined loads.

RICH
F-563575.07
€19.97
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

F-563575.07 RICH | Double Row Angular‑Contact Ball Bearing – 36.5 x 81.3 x 33 mm

Technical Specifications:

  • Catalog Code: F‑563575.07 RICH
  • Brand: RICH
  • Type: Double row angular‑contact ball bearing
  • Bore Diameter (d): 36.5 mm
  • Outer Diameter (D): 81.3 mm
  • Total Width (B): 33 mm
  • Outer Ring Width (C): 27 mm
  • Inner Ring Width: 30 mm
  • Cage: Polyamide
  • Weight: 0.748 kg
  • Country of Origin: China

Key Performance Advantages:

  • Double‑row angular‑contact design providing high rigidity and excellent support for combined loads.
  • Polyamide cage ensuring smooth ball guidance and reduced friction.
  • Wide inner and outer ring geometry improving stability under demanding operating conditions.

Transparency Note: This bearing is manufactured under the RICH brand. The code F‑563575.07 is used solely for identification and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
36,5
Outer Diameter
81,3
Width
33
Weight
0,748
Ball Rows
Double Row
Cage
Polyamide Cage
Category
Double Row Angular-Contact Ball Bearing
