7215 BM RICH 75x130x25

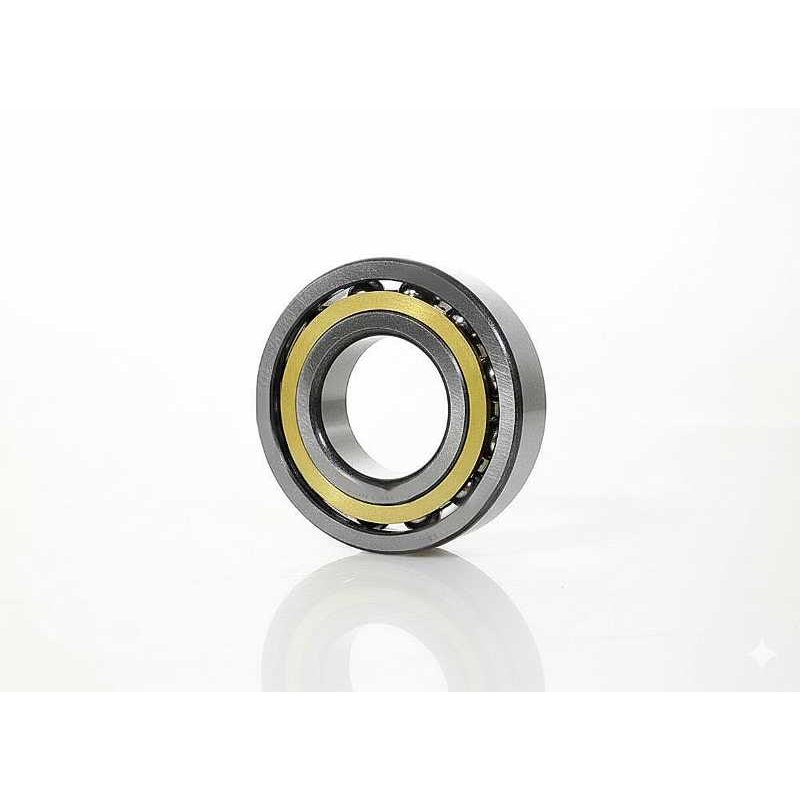

7215 BM RICH Single Row Angular Contact Ball Bearing – 75 × 130 × 25 mm

Technical Specifications:

• Brand: RICH
• Type: Single row angular contact ball bearing
• Model: 7215 BM RICH
• Inner Diameter (d): 75 mm
• Outer Diameter (D): 130 mm
• Width (B): 25 mm
• Contact Angle: 40° (B)
• Cage: Machined brass (M), guided by rolling elements
• Sealing: Open Type (None)
• Weight: 1.27 kg
• Country of Origin: China

Performance Characteristics:

• Contact Angle (40°): Optimized for high axial load carrying capacity in one direction.
• Machined Brass Cage (M): Provides structural stability and durability in heavy-load conditions.
• Angular Contact Geometry: Designed for the management of combined radial and axial loads.
• Open Configuration: Allows for direct lubrication within oil or grease systems.

7215 BM RICH is a single row angular contact ball bearing with a 40° contact angle and a machined brass cage guided by the rolling elements. Dimensional and structural characteristics correspond to the 75 × 130 × 25 mm specification.

Additional Technical Data:

• Designation: 7215 BM
• Bore Type: Cylindrical
• Material: Bearing steel
• Configuration: Single row

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with other manufacturers.
