  • 7204-B-2RS RICH 20x47x14 7204 RICH

7204-B-2RS RICH 20x47x14 | Contact Angle: 40°

The 7204-B-2RS RICH Single Row Angular-Contact Ball Bearing (20x47x14 mm) features a 40° contact angle for high axial load capacity and 2RS sealing.

RICH
7204
€4.22
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

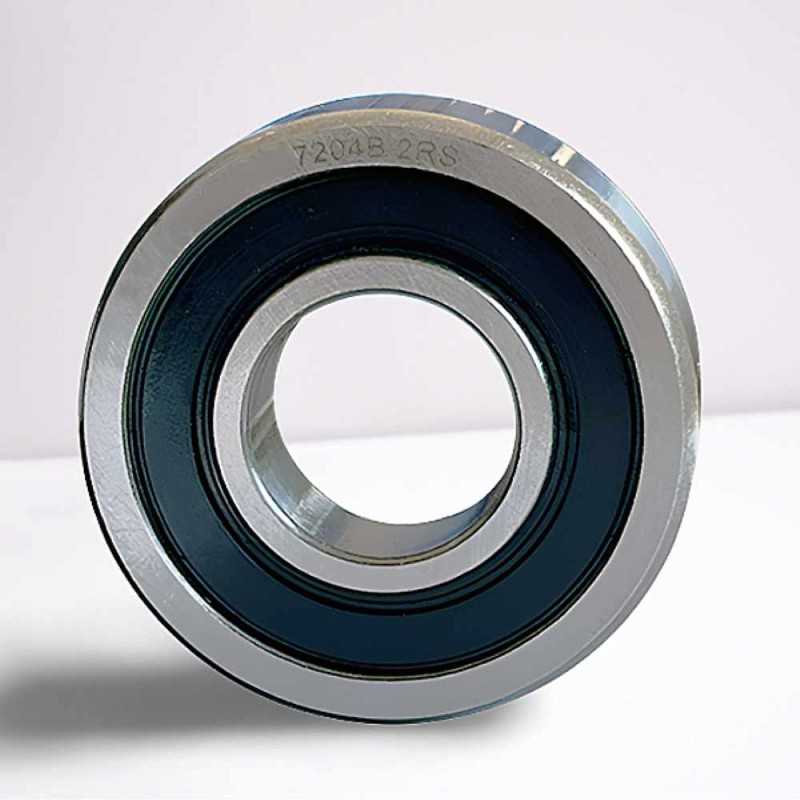

7204-B-2RS RICH Single Row Angular-Contact Ball Bearing - 20 x 47 x 14 mm

Technical Specifications:

  • Brand: RICH
  • Type: Single Row Angular-Contact Ball Bearing
  • Model: 7204-B-2RS
  • Dimensions: 20 x 47 x 14 mm
  • Inner Diameter (ID): 20 mm
  • Outer Diameter (OD): 47 mm
  • Width (W): 14 mm
  • Contact Angle: 40°
  • Sealing: Double-sided rubber, contact (2RS)
  • Lubrication: Pre-greased
  • Weight: 0.108 kg
  • Country of Origin: China

The 7204-B-2RS RICH is a high-precision Single Row Angular-Contact Ball Bearing manufactured by RICH. Featuring compact dimensions of 20 x 47 x 14 mm, this bearing is engineered to accommodate high combined radial and heavy axial loads in one direction.

The bearing features a significant 40° contact angle (B designation), which maximizes its axial load carrying capacity, making it ideal for applications requiring high rigidity and accurate shaft guidance. It is fitted with double-sided contact rubber seals (2RS), which provide optimal protection against contaminants and ensure the retention of the factory grease, eliminating the need for maintenance. The 7204-B-2RS RICH is commonly used in machine tool spindles, gear pumps, and high-speed industrial machinery where precise load handling and protection from the environment are crucial.

Key Performance Advantages:

  • High Axial Capacity: The 40° contact angle (B) is optimized for very heavy axial loads in one direction.
  • Integrated Sealing (2RS): Contact rubber seals retain grease and effectively exclude contaminants.
  • Greased for Life: Pre-lubricated for immediate use and maintenance-free operation.
  • High Precision: Designed for accurate shaft guidance and reliable operation in high-speed applications.

Data sheet

Inner Diameter
20
Outer Diameter
47
Width
14
Weight
0,108
Ball Rows
Single Row
Category
Single Row Angular-Contact Ball Bearing
