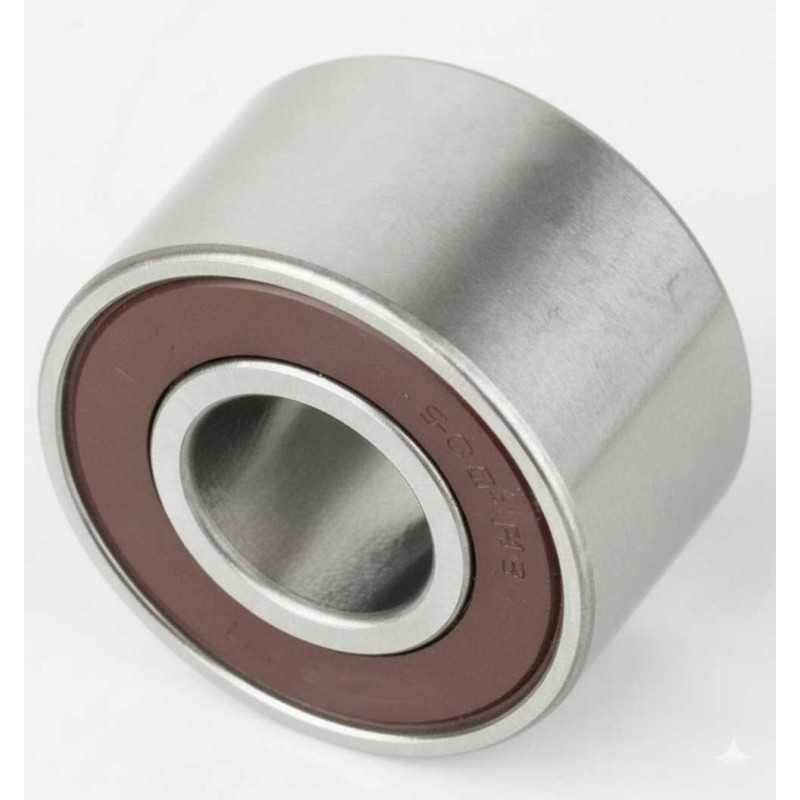

5001-2RS RICH Double Row Angular Contact Ball Bearing – 12 × 28 × 16 mm
Technical Specifications:
- Type: Double row angular-contact ball bearing
- Brand: RICH
- Model Designation: 5001-2RS RICH
- Inner Diameter (d): 12 mm
- Outer Diameter (D): 28 mm
- Width (B): 16 mm
- Weight: 0.04 kg
- Cage: Polyamide
- Sealing: Double-sided rubber, contact (2RS)
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Double row radial-axial ball bearing designed to accommodate combined loads in both directions.
- Internal Geometry: Two rows of balls with angular contact raceways, providing high tilting stiffness.
- Material Composition: High-carbon chromium steel rings and rolling elements with a lightweight polyamide cage.
- Sealing System: Integrated double-sided contact rubber seals for superior protection against dust and moisture.
- Dimensional Format: 12 × 28 × 16 mm configuration.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
