BST25X62-1BDFP4 RICH 25x62x15

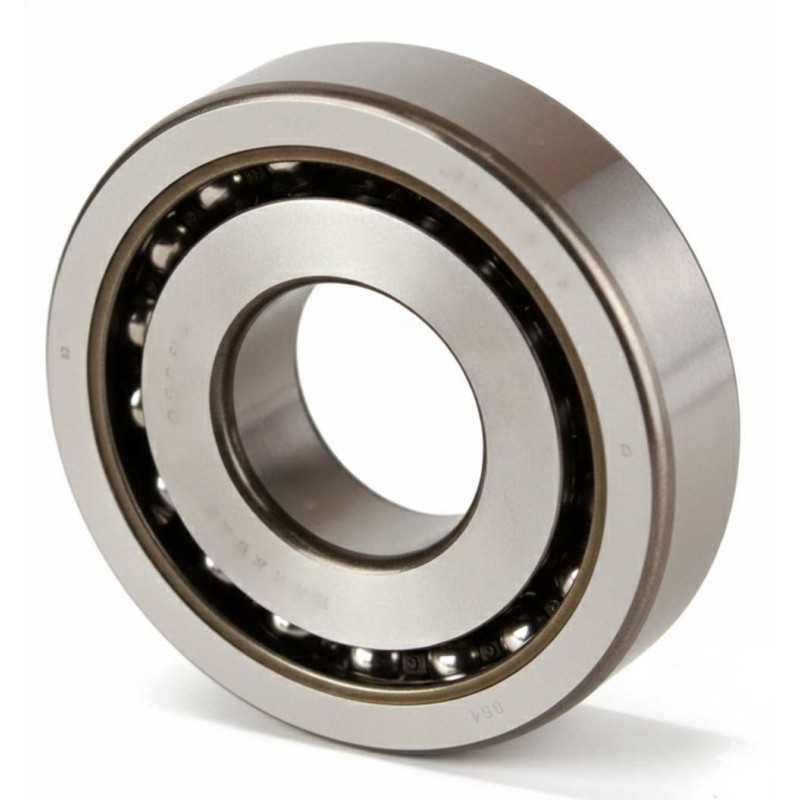

BST25X62-1BDFP4 RICH – Angular Contact Ball Bearing Set – 25 x 62 x 15 mm

Technical Specifications:

• Type: Single row angular contact ball bearing set (matched pair)
• Brand: RICH
• Model Designation: BST25X62-1BDFP4
• Inner Diameter (d): 25 mm
• Outer Diameter (D): 62 mm
• Width (B): 15 mm (per unit)
• Dimensions: 25 x 62 x 15 mm
• Contact Angle: 60°
• Arrangement: BDF (X-configuration, Face-to-Face)
• Precision Class: P4 (ISO Class 4)
• Cage Material: Polyamide
• Weight: 0.486 kg (set)
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Matched pair assembly in an X-configuration (><) designed for bidirectional axial and radial load management.
• Precision Level: P4 tolerance class specifying dimensional and running accuracy for high-precision mechanical interfaces.
• Load Capacity: 60-degree contact angle geometry designed for elevated axial force resistance.
• Internal Geometry: Spherical rolling elements maintained by a lightweight polyamide cage assembly for low-friction operation.
• Dimensional Format: 25 x 62 x 15 mm technical profile for specialized shaft support requiring high rigidity and precision.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
