• New
5206 ZZ RICH 30x62x23,8 5206ZZ RICH
zoom_out_map

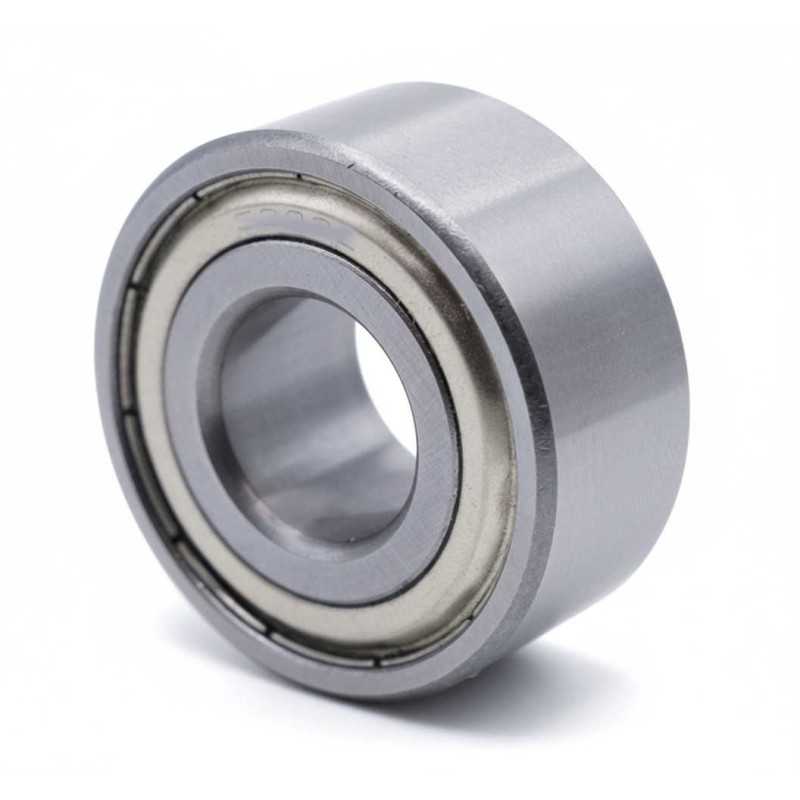

5206 ZZ RICH 30x62x23,8 5206ZZ RICH

5206 ZZ RICH 30x62x23,8

Type: Double Row Angular-Contact Ball Bearing
Model: 5206 ZZ RICH
Dimensions: 30 x 62 x 23.8 mm
Features: ZZ Metal Shields, Steel Cage, CN Clearance
Brand: RICH
Origin: China
RICH
5206ZZ
€8.14
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

5206 ZZ RICH – Double Row Angular-Contact Ball Bearing – 30 x 62 x 23.8 mm

Technical Specifications:

  • Type: Double row angular-contact ball bearing
  • Brand: RICH
  • Model Designation: 5206 ZZ
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 62 mm
  • Width (B): 23.8 mm
  • Sealing: ZZ (Double-sided non-contact metal shields)
  • Internal Clearance: CN (Normal clearance)
  • Cage Material: Steel
  • Weight: 0.299 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Double-row design providing the functionality of two single-row angular contact bearings in a back-to-back arrangement, optimized for high rigidity.
  • Sealing System: Equipped with two non-contact metal shields (ZZ) to retain factory grease and protect the raceways from large contaminants without increasing rotational friction.
  • Load Capability: Specifically engineered to support substantial radial loads and axial loads in both directions, making it ideal for applications requiring fixed axial guidance.
  • Mechanical Interface: 30 x 62 x 23.8 mm dimensional format manufactured according to industrial precision tolerances for heavy-duty rotary systems.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
30
Outer Diameter
62
Width
23,8
Weight
0,299
Ball Rows
Double Row
Sealing
Cover On Both Sides
Category
Double Row Angular-Contact Ball Bearing
