3202 2RS RICH 15x35x15,9

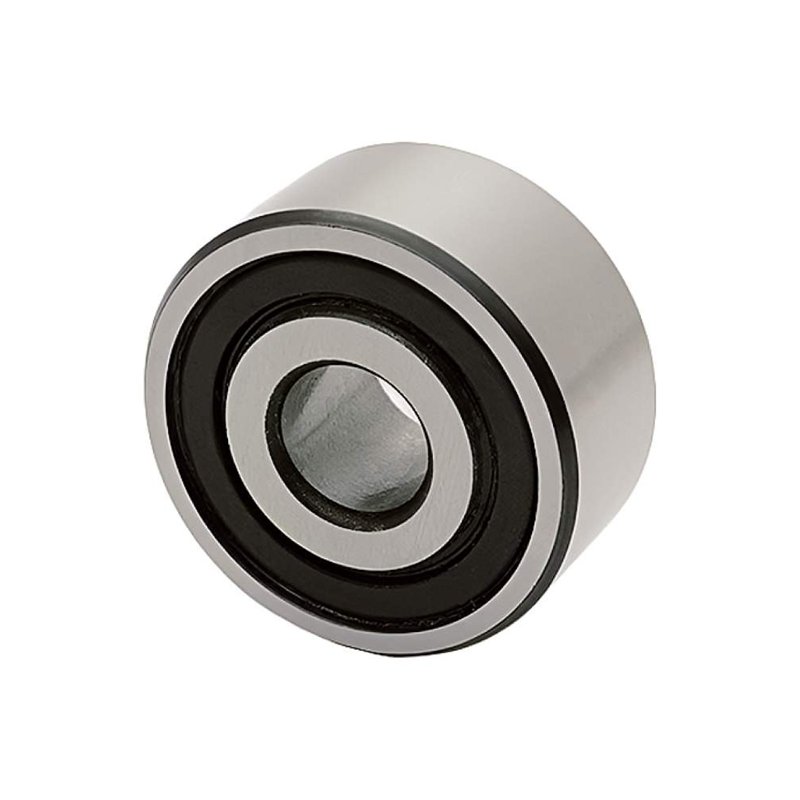

3202-2RS RICH Double Row Angular-Contact Ball Bearing - 15 x 35 x 15.9 mm

The 3202-2RS RICH is a high-quality double row angular-contact ball bearing, meticulously manufactured by RICH in China. This precision bearing is expertly designed to accommodate combined loads, meaning it can handle both radial and axial forces acting simultaneously. With precise dimensions of 15 mm bore, 35 mm outer diameter, and 15.9 mm width, it offers a robust and effective solution for demanding applications.

This RICH bearing features a CN (normal) clearance, indicating a standard radial internal clearance that is suitable for most general applications. The double-row design of this bearing allows it to handle axial loads in both directions, making it highly versatile for applications where axial forces can fluctuate or reverse. A key feature of this bearing is its double-sided rubber contact seals (2RS). These seals provide excellent protection against the ingress of dust, dirt, and moisture, while also effectively retaining the internal lubricant, contributing to a longer service life and reduced maintenance in contaminated environments.

Weighing just 0.07 kg, this durable component from RICH offers dependable performance and resilience. It is ideally suited for applications requiring high precision and the ability to manage combined loads in both directions, especially in environments where contamination is a concern, such as agricultural machinery, automotive components, and various industrial machines where robust and reliable operation is crucial.

Key Specifications:

• Type: Double Row Angular-Contact Ball Bearing
• Brand: RICH
• Model: 3202-2RS RICH
• Dimensions: 15 mm bore x 35 mm outer diameter x 15.9 mm width
• Bore Diameter (d): 15 mm
• Outer Diameter (D): 35 mm
• Width: 15.9 mm
• Clearance: CN - normal clearance
• Sealing: Double-sided rubber, contact (2RS)
• Weight: 0.07 kg
• Country of Origin: China

Key Advantages:

• High Combined Load Capacity: Designed to efficiently handle both radial and axial loads in both directions.
• Durable Sealing (2RS): Double-sided rubber contact seals provide excellent protection against contaminants and retain lubricant, extending bearing life.
• Optimal Clearance (CN): Normal radial internal clearance provides balanced performance for most general applications.
• RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.
• Reduced Maintenance: Sealed design helps minimize the need for relubrication in many applications.
