7207.A-MB RICH 35x72x17

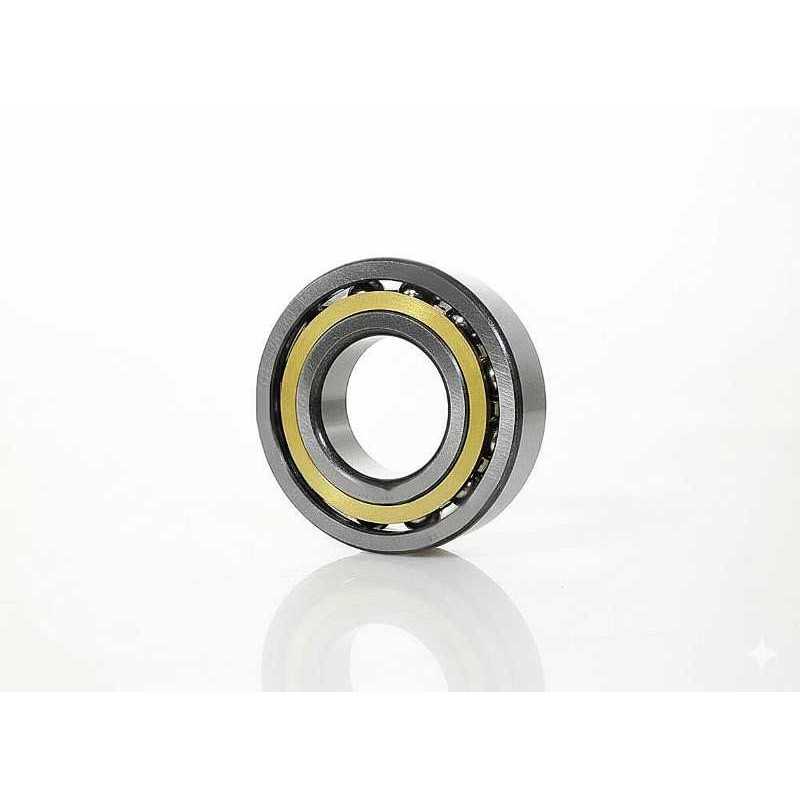

7207.A-MB RICH Single Row Angular Contact Ball Bearing – 35 × 72 × 17 mm

Technical Specifications:

• Brand: RICH
• Type: Single row angular contact ball bearing
• Model: 7207.A-MB RICH
• Inner Diameter (d): 35 mm
• Outer Diameter (D): 72 mm
• Width (B): 17 mm
• Contact Angle: 25° (A)
• Cage: Machined brass (MB), inner ring guided
• Sealing: Open Type (None)
• Weight: 0.322 kg
• Country of Origin: China

Performance Characteristics:

• Contact Angle (25°): Optimized for higher axial load capacity in one direction.
• Machined Brass Cage (MB): Inner ring guidance for high-speed stability and reduced vibration.
• Angular Contact Design: Designed for combined radial and axial load support.
• Open Configuration: Facilitates oil or grease lubrication in circulating systems.

7207.A-MB RICH is a single row angular contact ball bearing with a 25° contact angle and a machined brass cage guided on the inner ring. Dimensional and structural characteristics correspond to the 35 × 72 × 17 mm specification.

Additional Technical Data:

• Designation: 7207.A-MB
• Bore Type: Cylindrical
• Material: Bearing steel
• Configuration: Single row

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with other manufacturers.
