DAC3870 RICH 38x70x38 DAC3870 RICH
search
  • DAC3870 RICH 38x70x38 DAC3870 RICH

DAC3870 RICH 38x70x38

RICH
DAC3870
€12.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

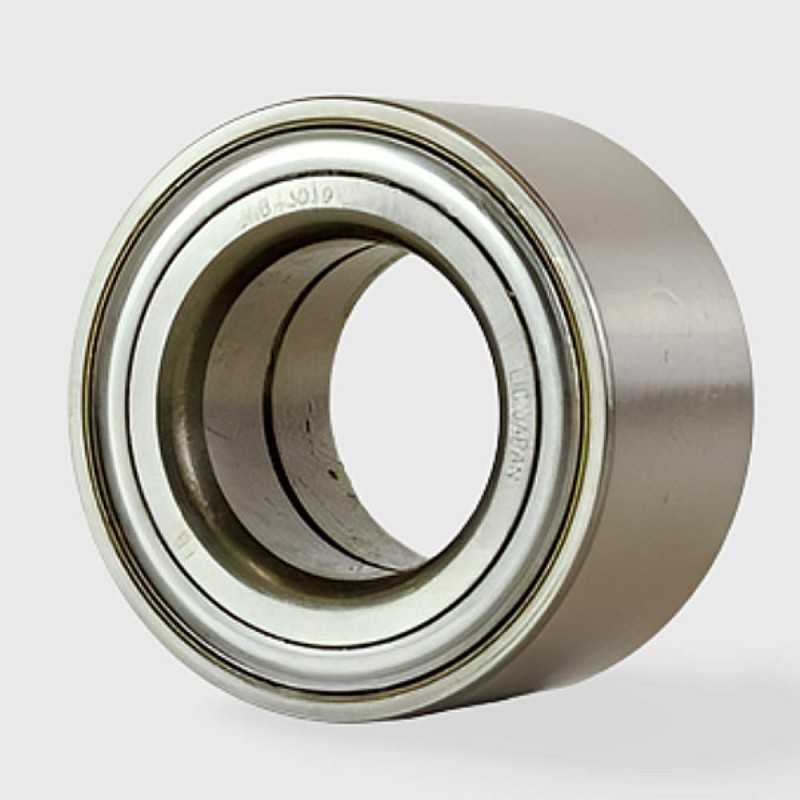

DAC3870 RICH Double Row Angular-Contact Ball Bearing - 38 x 70 x 38 mm (Shielded)

The DAC3870 RICH is a high-quality double row angular-contact ball bearing, precisely engineered to accommodate both radial and axial loads in both directions. This type of bearing is particularly well-suited for applications demanding high rigidity and accurate shaft guidance, thanks to its angular contact geometry that ensures superior performance under combined loading conditions. It features a C3 clearance, indicating that it has a radial internal clearance greater than normal, which can be beneficial for applications involving thermal expansion or potential misalignment. Equipped with double-sided non-contact shields, it offers protection against larger contaminants while allowing for slightly higher operating speeds compared to contact seals. The shields help to retain the internal lubrication, contributing to reliable performance. Its dimensions are a 38 mm bore diameter, 70 mm outer diameter, and a width of 38 mm. It has a weight of 0.584 kg. This product is manufactured in China by RICH.

Key Specifications:

  • Type: Double Row Angular-Contact Ball Bearing
  • Dimensions: 38 mm bore diameter x 70 mm outer diameter x 38 mm width
  • Weight: 0.584 kg
  • Clearance: C3 - greater than normal
  • Sealing: Double-sided non-contact shields
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • Manages both radial and axial loads in both directions.
  • Provides high rigidity and precise shaft guidance.
  • Optimized for superior performance under combined loads.
  • C3 clearance for applications with specific thermal or alignment needs.
  • Non-contact shields offer protection against large contaminants.
  • Contributes to reliable performance and extended operational life.
  • Suitable for a wide range of industrial and automotive applications.

Data sheet

Inner Diameter
38
Outer Diameter
70
Width
38
Weight
0,584
Ball Rows
Double Row
Sealing
Cover On Both Sides
Category
Double Row Angular-Contact Ball Bearing
