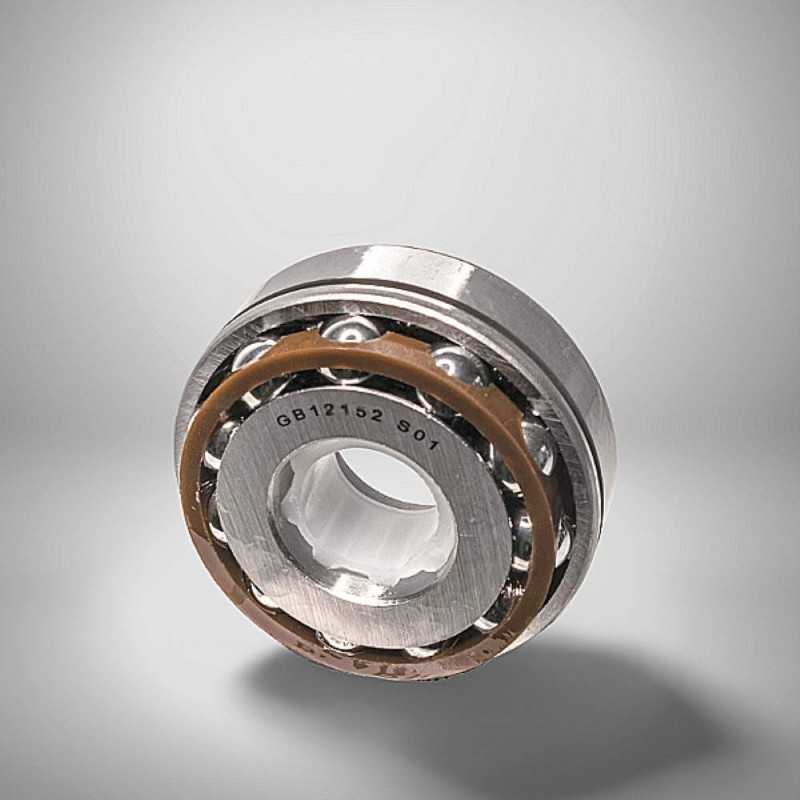

GB12152 S01 RICH Double Row Angular-Contact Ball Bearing – 28 x 67 x 28.2 mm – High Load Capacity with Polyamide Cage

Engineered for dynamic performance. The GB12152 S01 RICH double row angular-contact ball bearing is designed for applications demanding high stiffness and the ability to accommodate combined radial and axial loads. With precise dimensions of 28 mm inner diameter, 67 mm outer diameter, and a 28.2 mm width, this bearing offers robust performance in various industrial settings.

This RICH bearing features an 18 mm outer ring width (C) and a durable polyamide cage, which contributes to smooth operation and reduced friction at higher speeds. While it has no seals, making it suitable for applications where lubrication is managed externally or within an enclosed system, it includes a groove on the outer ring for simplified axial positioning and mounting.

Manufactured in China by RICH, this double row angular-contact ball bearing weighs 0.4 kg, providing a sturdy yet manageable component for machinery such as gearboxes, pumps, and electric motors, where reliable load support and precise rotational guidance are essential.

Technical Specifications:

  • Type: Double Row Angular-Contact Ball Bearing
  • Model: GB12152 S01
  • Brand: RICH
  • Inner Diameter (d): 28 mm
  • Outer Diameter (D): 67 mm
  • Width (B): 28.2 mm
  • Outer Ring Width (C): 18 mm
  • Cage: Polyamide
  • Sealing: None
  • Outer Ring Feature: Groove on outer ring (Yes)
  • Weight: 0.4 kg
  • Country of Origin: China

Key Performance Advantages:

  • High Combined Load Capability: Effectively handles both significant radial and axial forces.
  • Enhanced Rigidity: Provides stable and precise shaft guidance for demanding applications.
  • Durable Polyamide Cage: Contributes to smooth operation and prolonged service life.
  • Simplified Installation: Outer ring groove facilitates easier axial positioning.
  • Trusted RICH Quality: Delivers consistent and reliable performance for industrial use.

Data sheet

Inner Diameter
28
Outer Diameter
67
Width
28,2
Weight
0,4
Ball Rows
Double Row
Cage
Polyamide Cage
Category
Double Row Angular-Contact Ball Bearing
