469/453X RICH 57,15x104,775x30,162 469/453X RICH
zoom_out_map
469/453X RICH 57,15x104,775x30,162 469/453X RICH

469/453X RICH 57,15x104,775x30,162

Type: Single Row Tapered Roller Bearing
Model: 469/453X RICH
OE References: 4746981 CHRYSLER, 9036857010 TOYOTA, JD7439 JOHN DEERE
Dimensions: 57.15 x 104.775 x 30.162 mm
Brand: RICH
Origin: China
RICH
469/453X
€10.57
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

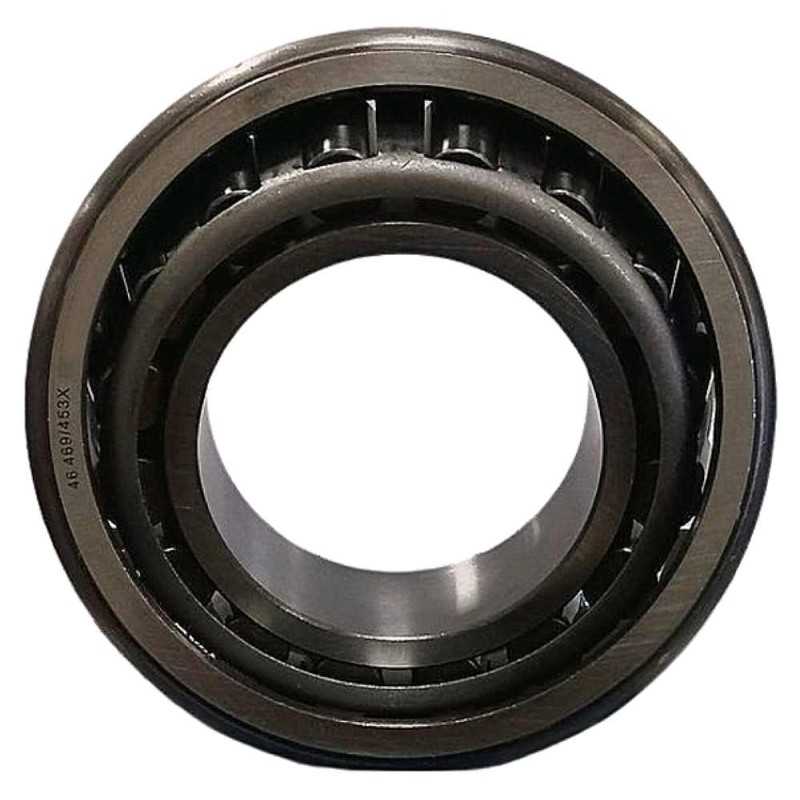

469/453X RICH – Single Row Tapered Roller Bearing – 57.15 x 104.775 x 30.162 mm

OE Reference:

[Image of single row tapered roller bearing component layout]

  • CHRYSLER: 4746981
  • GM: 9432585
  • IHC: 67097R91
  • JOHN DEERE: JD7439, JD8131
  • TOYOTA: 9036857010
  • VALTRA: 655662

Technical Specifications:

  • Type: Single row tapered roller bearing
  • Brand: RICH
  • Model Designation: 469/453X
  • Inner Diameter (d): 57.15 mm
  • Outer Diameter (D): 104.775 mm
  • Total Width (T): 30.162 mm
  • Inner Ring Width (B): 29.317 mm
  • Outer Ring Width (C): 24.605 mm
  • Weight: 1.096 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Precision-engineered single-row assembly featuring conical rollers and raceways designed to accommodate high radial and axial loads simultaneously.
  • Load Capability: Engineered for heavy-duty applications in transmissions and industrial gearboxes, providing superior mechanical rigidity and high resistance to shock loads.
  • Operational Efficiency: Optimized internal geometry ensures uniform contact stress distribution across the rolling elements, reducing friction and extending component service life.
  • Mechanical Interface: 57.15 x 104.775 x 30.162 mm dimensional format manufactured to rigorous industrial standards for stable shaft positioning and precise guidance.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
57,15
Outer Diameter
104,775
Width
30,162
Weight
1,06
Roller Rows
Single Row
Cage
Steel
Category
Single Row Tapered Roller Bearing
